Features

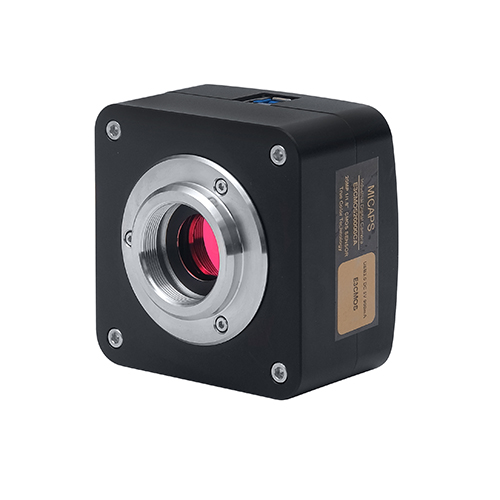

- Standard C-Mount Camera with Aptina or Panasonic CMOS sensor
- CNC aluminum alloy housing
- With hardware resolution 16M
- Super-fine™ HISP VP and USB3.0 5 Gbps interface ensuring high frame rates

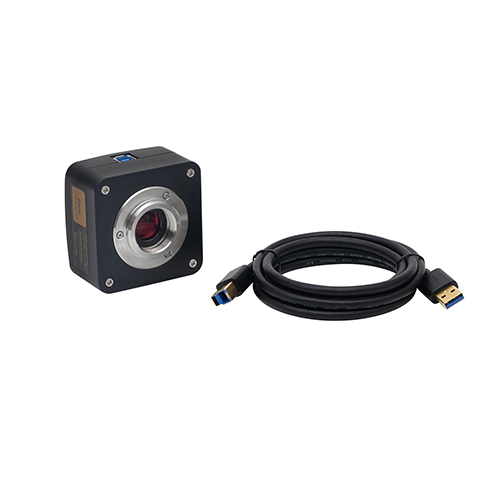

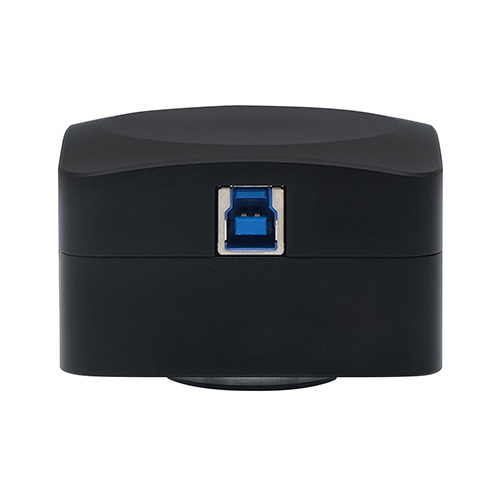

- USB3.0 5Gbps interface ensuring high speed data transmission
- Super-Fine color engine with perfect color reproduction capability
- With advanced video & image processing application MicroView
Applications
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| E3CMOS16000CA | 16M/MN34120(C) 1/2.33” (6.18×4.66) |
1.335×1.335 | R: 2454LSB Gr: 2444LSB Gb: 1054LSB B: 996LSB |
6@4632×3488 15@2320×1740 26.0@1536×1160 |
1×1 2×2 3×3 |
0.2ms~2s |
| E3CMOS16000CB | 16M/MN34120(C) 1/2.33” (6.18×4.67) |
3.8×3.8 | R: 1315LSB Gr: 2413LSB Gb: 2413LSB B: 1042LSB (Gain = 0db) |
22@4640×3506 30@3360×2526 43@2304×1750 49@1536×1168 |
1×1 2×2 3×3 |
0.2ms~15s |
| ECO3CMOS18000CA | 18M/AR1820(C) 1/2.3” (6.14×4.61) |
1.25×1.25 | 0.62V/lux-sec 65.8dB 36.3 |
13.1@4912×3684 34.3@2456×1842 54.4@1228×922 |
1×1 2×2 4×4 |
0.1ms~2s |
| E3CMOS20000CA | 20M/AR2020(C) 1/1.8” (7.17×5.38) |
1.4×1.4 | 8.4 ke-/lux.sec | 20@5120×3840 45@2560×1920 |
1×1 2×2 |
0.2ms~15s |
| Other Hardware Configuration | |
|---|---|
| Spectral Range | 380~650nm (with IR-cut Filter) |
| White Balance | ROI White Balance / Manual Tint Adjustment / NA for Monochromatic Sensor |
| Color Technique | Super Fine HISP VP / NA for Monochromatic Sensor |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| ADC | 8 Bit / 12 Bit |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| Operating Environment | |
|---|---|
| Operating Temperature (in Centidegree) | -10°C ~ 50°C |
| Storage Temperature (in Centidegree) | -20° C~ 60°C |
| Operating Humidity | 30 ~ 80%RH |
| Storage Humidity | 10 ~ 60%RH |
| Power Supply | DC 5V over PC USB Port, External Power Adapter for Cooling System, DC12V, 3A |
| Software Environment | |
|---|---|
| Operating System | Support Microsoft Windows XP / Vista / 7 / 8 /10 (32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 2GB or More USB port: USB3.0 High-speed Port Display: 17″ or Larger CD-ROM |
