| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
| ECOHDMI1080P | Sony IMX307(C) 1/2.8″(5.57×3.13) | 2.9×2.9 | 1300mv with 1/30s | 60@1920*1080(HDMI) | 1×1 | 0.01~1000 |

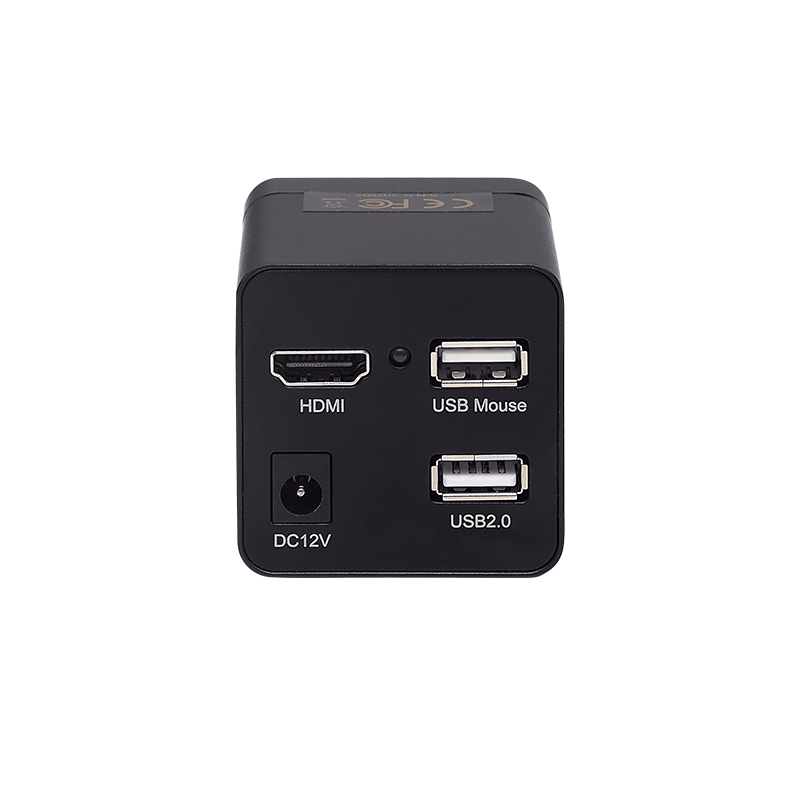

| Interface or Button | Function Description |
| HDMI | Comply with HDMI1.4 standard. 1080P format video output for standard FHD monitor |
| SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images storage |
| LED | LED status indicator |
| DC12V | Power adapter connection (12V/1A) |
| USB Mouse | Connect USB mouse for easy operation with embedded MicroCamView software |
| Video Output Interface | Function Description |
| HDMI Interface | Comply with HDMI1.4 standard; 60fps@1080P |
| Operating Environment | |
| Operating Temperature (in Centidegree) | -10~ 50 |
| Storage Temperature (in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Other Function | Function Description |
| Video Saving | Video format: 2M(1920*1080) H264 encoded MP4 file Video saving frame rate: 50–60fps (related with SD card performance) |
| Image Capture | 2M (1920*1080) JPEG image in SD card |
| Measurement Saving | Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
| ISP | Exposure (Automatic / Manual Exposure) / Gain, White Balance (Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50Hz/60Hz Anti-flicker Function |
| Image Operation | Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function |
| Embedded RTC (Optional) | To support accurate time on board |
| Restore Factory Settings | Restore camera parameters to its factory status |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian |
| Model Name | Download PDF |
| ECOHDMI1080P |  Download |
