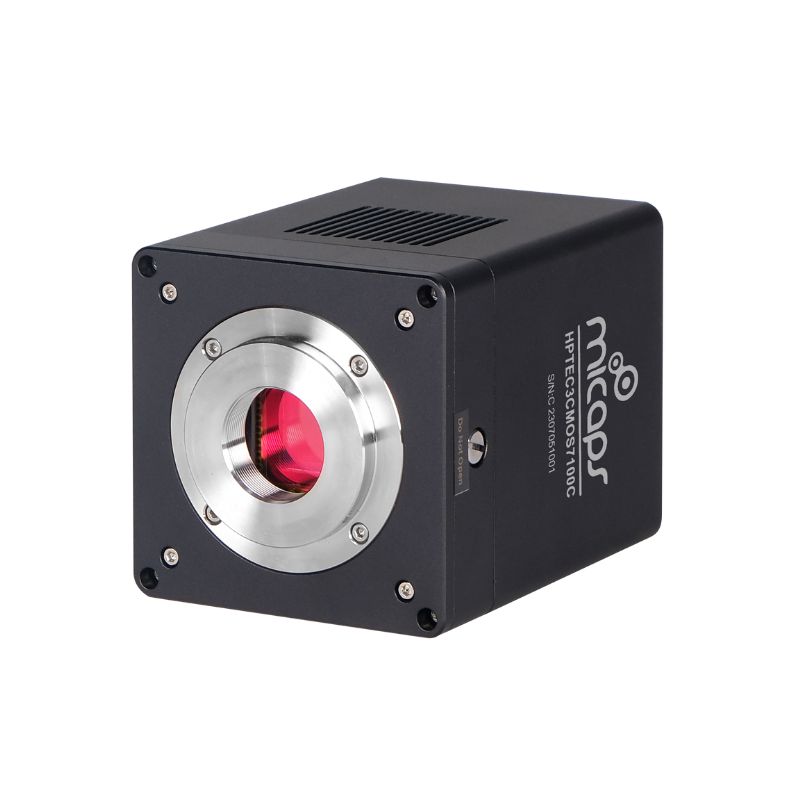

HPTEC3CMOS SERIES

C-mount USB 3.0 CMOS Cameras
SONY PREGIUS CMOS Sensor

The HPTEC3CMOS camera utilizes a SONY PREGIUS CMOS sensor for capturing images, and it connects via USB 3.0 for efficient data transfer. The HPTEC3CMOS hardware resolutions range is 0.5MP to 45MP, housed in a compact CNC aluminum alloy casing with Two-stage TE-cooling. Equipped with a two-stage peltier cooling system, the sensor chip can reach temperatures as low as -42 degrees below the ambient temperature. This feature significantly improves the signal-to-noise ratio and reduces image noise. The camera is designed with a smart structure to enhance heat radiation efficiency and prevent moisture-related issues. An controllable electric fan is incorporated to expedite the heat dissipation process.

The HPTEC3CMOS comes bundled with the advanced Micaps MicroView application for video and image processing. It supports multiple platforms, including Windows, Linux, macOS, and Android, with SDKs for various programming languages such as Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, and more. This camera is well-suited for applications in low-light environments, as well as capturing and analyzing microscope fluorescence images. Additionally, it can be utilized for deep-sky astronomy applications.

Features

Applications

Model No.	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
HPTEC3CMOS45000MA	45M/IMX492(M) 4/3″(19.11×13.00)	2.315×2.315	351mV with 1/30s 0.12mV with 1/30s	8.1@8176×5616 30.0@4080×2808 8.1@7408×5556 33.0@3696×2778 10.4@8176×4320 34.7@4096×2160 62.5@2048×1080 86.5@1360×720 8 Bit / 12 Bit	1×1(3:2) 2×2(3:2) 1×1(4:3) 2×2(4:3) 1×1(17:9) 2×2(17:9) 3×3(17:9) 4×4(17:9)	0.1ms~1h
HPTEC3CMOS26000CA	26M/IMX571(C) 1.8”(23.48×15.67) APS-C	3.76×3.76	485mv with 1/30s 0.07mv with 1/30s	14@6224×4168 37@3104×2084 110@2064×1386 8 Bit / 16 Bit	1×1 2×2 3×3	0.1ms~1h
HPTEC3CMOS26000MA	26M/IMX571(M) 1.8”(23.48×15.67) APS-C	3.76×3.76	871mv with 1/30s 0.07mv with 1/30s	14@6224×4168 37@3104×2084 110@2064×1386 8 Bit / 16 Bit	1×1 2×2 3×3	0.1ms~1h
HPTEC3CMOS21000CA	21M/IMX269(C) 4/3″(17.4×13.1)	3.3×3.3	400mv with 1/30s 0.1mv with 1/30s	17@5280×3954 17@3952×3952 56@2640×1976 67@1760×1316 192@584×438 8 Bit / 12 Bit	1×1 1×1 2×2 3×3 9×9	0.1ms~1h
HPTEC3CMOS20000CA	20M/IMX183(C) 1”(13.056×8.755)	2.4×2.4	462mv with 1/30s 0.21mv with 1/30s	19.0@5440×3648 48.8@2736×1824 59.4@1824×1216 8 Bit / 12 Bit	1×1 2×2 3×3	0.1ms~1h
HPTEC3CMOS20000MA	20M/IMX183(M) 1″(13.056×8.755)	2.4×2.4	388mv with 1/30s 0.21mv with 1/30s (F8.0)	19.0@5440×3648 48.8@2736×1824 59.4@1824×1216 8 Bit / 12 Bit	1×1 2×2 3×3	0.1ms~1h
HPTEC3CMOS16000CA	16M/MN34230PLJ(C) 4/3″(17.6×13.3)	3.8×3.8	2413LSB 89.1LSB (Gain = 0dB)	6@4640×3506 20@2304×1750 48.0@1536×1160 8 Bit / 12 Bit	1×1 2×2 3×3	0.15ms~1h
HPTEC3CMOS16000MA	16M/MN34230ALJ(M) 4/3″(17.6×13.3)	3.8×3.8	2650LSB 89.1LSB (Gain = 0dB)	22.5@4648×3506 43.0@2304×1750 48.0@1536×1168 8 Bit / 12 Bit	1×1 2×2 3×3	0.15ms~1h
HPTEC3CMOS10300CA	10.3M/IMX294(C) 4/3″(19.11×13.0)	4.63×4.63	419mv with 1/30s 0.12mv with 1/30s	30.0@4128×2808 38.5@4096×2160 59.8@2048×1080 87.2@1360×720 8 Bit / 14 Bit	1×1 1×1 2×2 3×3	0.15ms~1h
HPTEC3CMOS10300MA	10.3M/IMX492(M) 4/3″(19.11×13.0)	4.63×4.63	701mv with 1/30s 0.12mv with 1/30s	40@2992×3000 62@1488×1500 186@992×998 8 Bit / 14 Bit	1×1 1×1 2×2 3×3	0.15ms~1h
HPTEC3CMOS9000CA	9M/IMX533(C) 1″(11.28×11.28)	3.76×3.76	534mv with 1/30s 0.04mv with 1/30s	40@2992×3000 62@1488×1500 186@992×998 8 Bit / 14 Bit	1×1 2×2 3×3	0.1ms~1h
HPTEC3CMOS9000MA	9M/IMX533(M) 1″(11.28×11.28)	3.76×3.76	534mv with 1/30s 0.04mv with 1/30s	40@2992×3000 62@1488×1500 186@992×998 8 Bit / 14 Bit	1×1 2×2 3×3	0.1ms~1h
HPTEC3CMOS8300CA	8.3M/IMX585(C) 1/1.2″(11.4×6.26)	2.9×2.9	5970mv with 1/30s 0.15mv with 1/30s	45@3840×2160 70@1920×1080 8 Bit / 12 Bit	1×1 2×2	0.1ms~1h
HPTEC3CMOS7100CA	7.0M/IMX428(C,GS) 1.1″(14.4×9.5)	4.5 × 4.5	2058mv with 1/30s 0.15mv with 1/30s	51.3@3200×2200 133.8@1584×1100 8 Bit / 12 Bit	1×1 1×1	0.1ms~1h
HPTEC3CMOS7100MA	7.0M/IMX428(M,GS) 1.1″(14.4×9.5)	4.5 × 4.5	3354mv with 1/30s 0.15mv with 1/30s	51.3@3200×2200 133.8@1584×1100 8 Bit / 12 Bit	1×1 1×1	0.1ms~1h
HPTEC3CMOS23000CA	2.3M/SC2110(C,RS) 1.69″(23.0×14.4)	12×12	120000 mV/lux·s @ HCG	120@1920×1200 8 Bit / 12 Bit	1×1	0.1ms~1h
HPTEC3CMOS23000MA	2.3M/SC2110(M,RS) 1.69″(23.0×14.4)	12×12	120000 mV/lux·s @ HCG	120@1920×1200 8 Bit / 12 Bit	1×1	0.1ms~1h
HPTEC3CMOS17000CA	1.7M/IMX432(C,GS) 1.1″(14.4×9.5)	9.0 × 9.0	4910mv with 1/30s 0.3mv with 1/30s	33@1600×1100	1×1	0.1ms~1h
HPTEC3CMOS17000MA	1.7M/IMX432(M,GS) 1.1″(14.4×9.5)	9.0 × 9.0	8100mv with 1/30s 0.3mv with 1/30s	94@1600×1100	1×1	0.1ms~1h
HPTEC3CMOS13000MA	1.3M/GLUX9701BSI(M,UXY) 1″(12.493×9.994)	9.76 × 9.76	2.57×10⁸/(e-/(W/(m2).s)) QE@89% @610nm 0.08(e-/s/pix)@-28C	30fps@1280×1024 30fps@640×512 8 Bit / HDR 16 Bit	1×1 2×2	0.1ms~1h
HPTEC3CMOS500MA	0.5M/GLUX1605BSI(M,UV) 1″(12.8×9.6)	16.0 × 16.0	TBD	60.0@800×600 60.0@400×300 8 Bit / HDR 16 Bit	1×1 2×2	0.1ms~1h

Other Hardware Configuration
Spectral Range	380-650nm (with IR-filter), for Monochromatic Camera, AR is Used
White Balance	ROI White Balance / Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture and Movie
Cooling System*	Two-stage TE-cooling System -42°C below Camera Body Temperature

Operating Environment
Operating Temperature (in Centidegree)	-10° ~ 50°
Storage Temperature (in Centidegree)	-20° ~ 60°
Operating Humidity	30 ~ 80%RH
Storage Humidity	10 ~ 60%RH

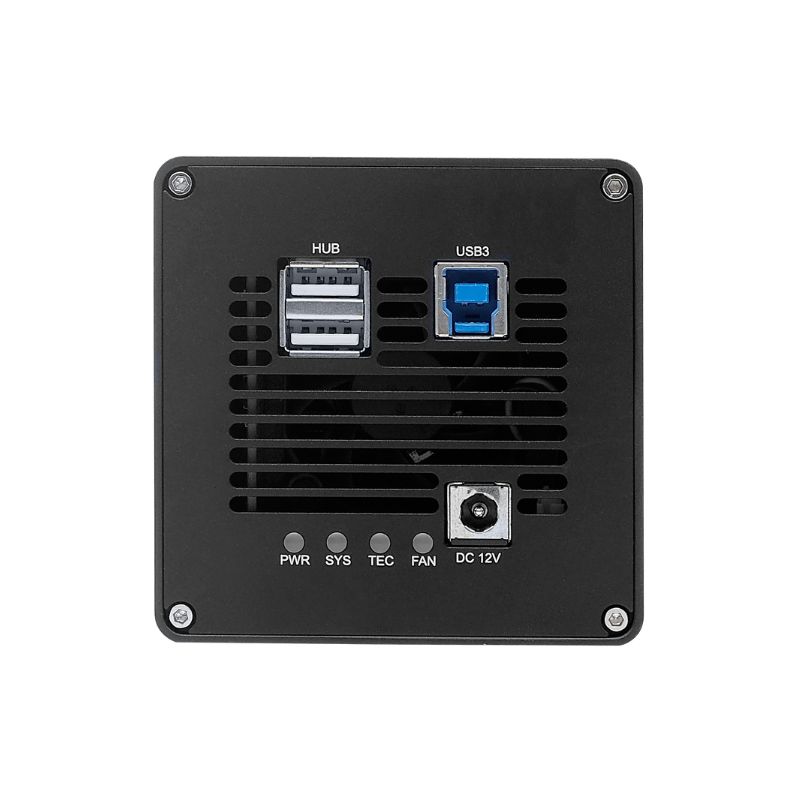

Power Supply	DC 5V over PC USB Port External Power Adapter for Cooling System, DC12V, 3A

Software Environment
Operating System	Support Microsoft Windows XP / Vista / 7 / 8 /10 (32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 2GB or More USB port: USB2.0 High-speed Port Display: 17″ or Larger CD-ROM
