Applications
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
- Scientific research, education (teaching, demonstration and academic exchanges)
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
| ISVIS4K8MPCA | IMX678(C) 1/1.8″(7.68×4.32) | 2.0×2.0 | 3541mv with 1/30s 0.15mv with 1/30s | 60@3840×2160 | 1×1 | 0.019~1000 |
| Model No. | Video Saving (FPS/Resolution) | HDMI2.0 (FPS/Resolution) | USB3.0 (FPS/Resolution) | WiFi(FPS/Resolution) |
| ISVIS4K8MPCA | 60@3840×2160 60@1920×1080 | 60@3840×2160 60@1920×1080 | 30@3840×2160 45@2688×1512 60@1920×1080 | 30@3840×2160 60@1920×1080 60@1280×720 |

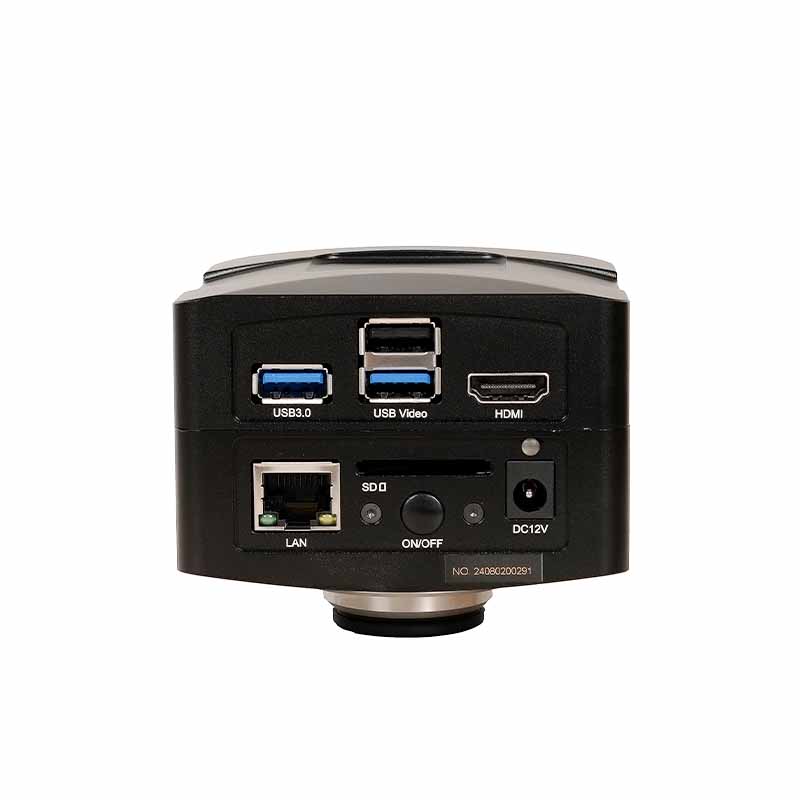

| Interface or Button | Function Description |
| USB 2.0 | Connect USB mouse for easy operation with embedded MicroView software |
| USB Video | Connect PC or other host device to realize video image transmission |
| USB | Connect USB flash drive to save pictures and videos. Connect 5G WiFi module to transfer video wirelessly in real time Connect USB microphone for audio and video recording |
| ON/OFF | Power switch (Short press to turn on, long press to turn off) |
| HDMI OUT | Comply with HDMI2.0 standard. Used to extend 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
| LED | LED status indicator |
| +/- | Display brightness adjustment button |
| MENU | Display menu key |
| DC 12V2A | Power adapter connection (12V/2A) |
| Interface or Button | Function Description |
| HDMI Interface | Synchronize video output through HDMI OUT interface, comply with HDMI2.0 standard; 60fps@4K Or 60fps@1080P |
| WiFi Interface | Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode |
| USB Video Interface | Connecting USB Video port of PC for video transfer H264/MJPEG format video |
| Operating Environment | |
| Operating Temperature (in Centidegree) | -10°~ 50° |
| Storage Temperature (in Centidegree) | -20°~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/2A Adapter |
| Interface or Button | Function Description |
| Video Saving | Video format： 8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate: 60fps on low delay mode; 30fps in WDR mode |
| Image Capture | 8M (3840*2160) JPEG/TIFF image in USB flash drive |
| Measurement Saving | Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
| ISP | Exposure (Automatic / Manual Exposure) / Gain, White Balance, Sharpness, 3D Denoising, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray,50HZ/60HZ Anti-flicker Function |
| Image Operation | Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Video EDF, Cross Line, Overlay, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, Picture EDF, Image Processing), Measurement Function |
| Embedded RTC (Optional) | To support accurate time on board |
| Restore Factory Settings | Restore Camera parameters to its factory status |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Dutch /Portuguese |
| Software Environmentunder WiFi/USBVideo Output | |
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows® 8 / 8.1 / 10 / 11(32 & 64 bit) OSx(Mac OS X), Linux |
| Model Name | Download PDF |
| ISVIS4K8MPCA |  Download |
