Features
- Sony Exmor/STARVIS back-illuminated CMOS sensor
- Rolling Shutter

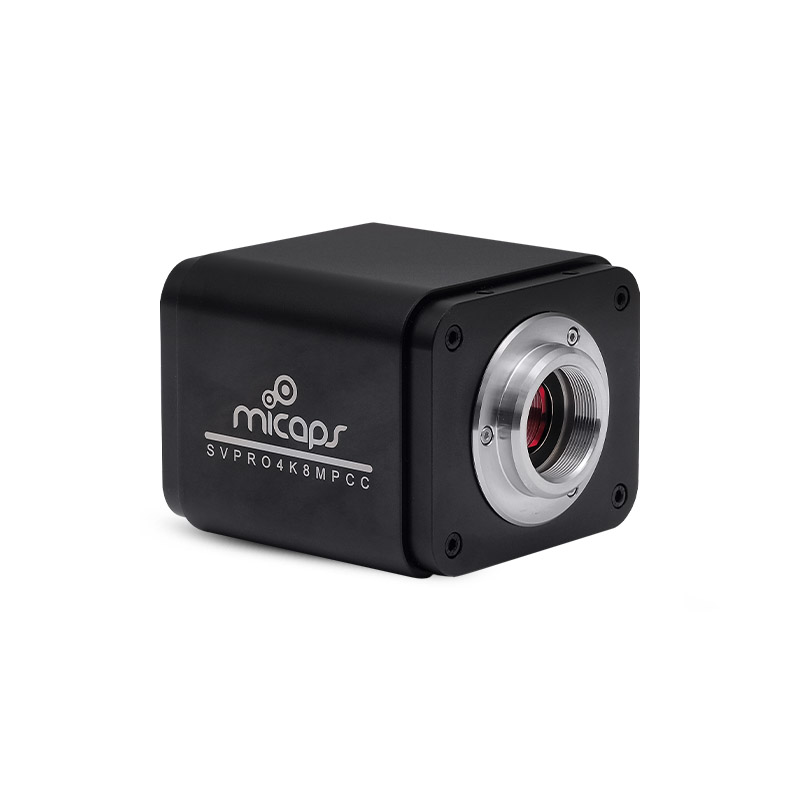

- 4K HDMI/WLAN/USB multiple video outputs C-mount camera
- 4K/1080P auto switching according to monitor resolution
- MicroView/MicroLite software for PC
- Embedded SVPROView for the control of the camera and image processing
- Excellent ISP with local tone mapping and 3D denoising
- iOS/Android applications for smart phones or tablets
- SD card/USB flash drive for captured image and video storage, support local preview and playback
Applications
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| SVPRO4KUHD8MPCA | 4K/Sony IMX334(C) 1/1.8″(7.68×4.32) |
2.0×2.0 | 505 mv with 1/30s 0.1mv with 1/30s |
30 @3840×2160 (HDMI) 30 @3840×2160 (WLAN) 30 @3840×2160 (USB) |
1×1 | 0.04ms~1000ms |
| SVPRO4KUHD8MPCC | 4K/Sony IMX678(C) 1/1.8″(7.68×4.32) |
2.0×2.0 | 1364mv with 1/30s 0.15mv with 1/30s |
30 @3840×2160 (HDMI) 30 @3840×2160 (WLAN) 30 @3840×2160 (USB) |
1×1 | 0.04ms~1000ms |
| SVPRO4KUHD8MPCD | 4K/Sony IMX585(C) 1/1.2″(11.14×6.26) |
2.9×2.9 | 1028mv with 1/30s 0.13mv with 1/30s |
30 @3840×2160 (HDMI) 30 @3840×2160 (WLAN) 30 @3840×2160 (USB) |
1×1 | 0.04ms~1000ms |

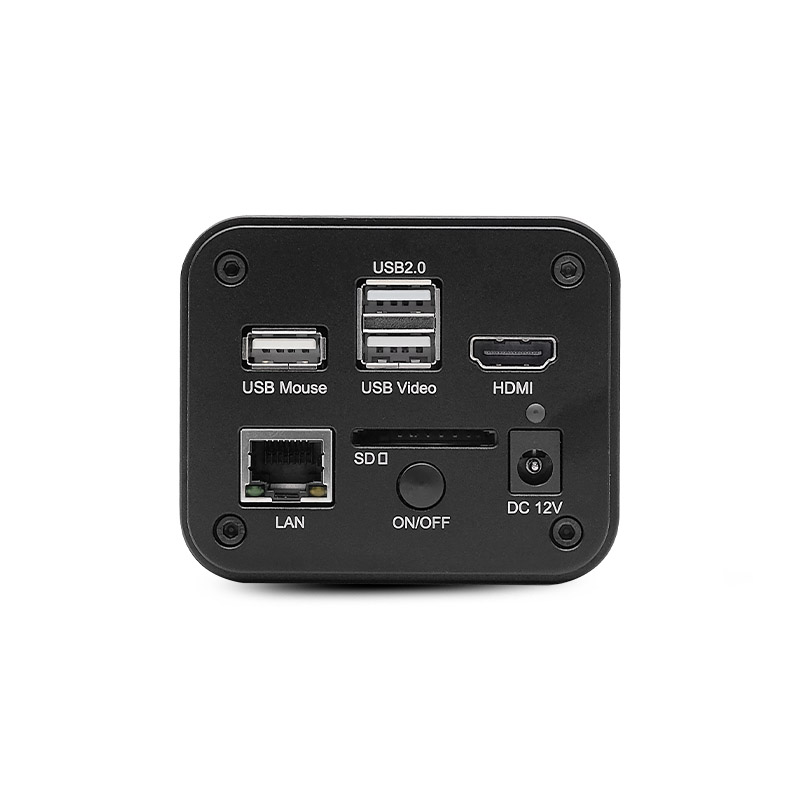

| Interface or Button | Function Description |
|---|---|
| USB Mouse | Connect USB mouse for easy operation with embedded software |
| USB 2.0 | Connect USB flash drive to save pictures and videos |
| USB VIDEO | Connect 5G WLAN module to transfer video wirelessly in real time |
| HDMI | Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
| ON/OFF | Power switch |
| LAN | LAN port to connect router and switch to transfer video |
| SD | SD card, comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
| LED | LED status indicator |
| DC12V | Power adapter connection (12V/1A) |
| Software Environment Under Lan/wan/usb Video Output | |
|---|---|
| White Balance | Auto White Balance |
| Color Technique | Super Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture and Movie |
| Operating System | Microsoft Windows XP/Vista/7/8/8.1/10 (32 & 64 bit), OSX (Mac OS X), LINUX |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher, Memory: 4GB or More, Ethernet Port: RJ45 Ethernet Port, Display: 19” or Larger, CD-ROM |
| Video Output Interface | Function Description |
|---|---|
| HDMI Interface | Comply with HDMI1.4 standard, 30fps@4K or 30fps@1080P |
| LAN Interface |
Support real-time resolution switching (4K/1080P/720P) H264 encoded video DHCP configuration or manual configuration Unicast/multicast configuration |
| WLAN Interface | Connecting 5G WLAN adapter (USB2.0 slot) in AP/STA mode |
| USB Video Interface | Connecting USB Video port of PC for video transfer |
| Other Function | Function Description |
|---|---|
| Video Saving | Video format: 8M (3840×2160) H264/H265 encoded Mp4 file Video saving frame rate: 30fps in SD card or USB flash drive |
| Measurement Saving |
Measurement information saved in different layer with image content Measurement information is saved together with image content in burn-in mode |
| ISP |
Exposure (Automatic / Manual Exposure) / Gain, White Balance (Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
| Video/Image Operation |
Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Color/Gray, Freeze, Cross Line, Overlay, Auto Focus, Compare (Comparison between real time video and images in SD card/USB flash drive), Embedded Files Browser, Video Playback, Measurement Function |
| Embedded RTC (Optional) | To support accurate time on board |
| Restore Factory Settings | Restore camera parameters to its factory status |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian |
| Operating Environment | |
|---|---|
| Operating Temperature | -10 °C ~ 50 °C |
| Storage Temperature | -20 °C ~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/1A Adapter |
