Applications
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
| Model No. | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| UPRO4KUHD8MPCA | Sony IMX678(C) 1/1.8”(7.68×4.32) | 2.0×2.0 | 1364mv with 1/30s 0.1mv with 1/30s | 72@3840*2160 | 1×1 | 0.019~1000 |
| UPRO4KUHD8MPCB | Sony IMX585(C) 1/1.2”(11.14×6.26) | 2.9×2.9 | 1028mv with 1/30s 0.39mv with 1/30s | 75@3840*2160 | 1×1 | 0.048~1000 |
| UPRO4KUHD16MPCA | Sony IMX283(C) 1/1.1”(13.06×7.34) | 2.4×2.4 | 1874mv with 1/30s 0.84mv with 1/30s | 30@5440*3060 | 1×1 | 0.104~1000 |
| Camera Model | Video Saving (FPS/Resolution) | HDMI2.0 (FPS/Resolution) | USB3.0 (FPS/Resolution) | NETWORK (FPS/Resolution) |
|---|---|---|---|---|
| UPRO4KUHD8MPCA | 72@3840*2160 |
60@3840*2160 60@1920*1080 |
30@3840*2160 45@2688*1512 60@1920*1080 |
30@3840*2160 60@1920*1080 72@1280*720 |
| UPRO4KUHD8MPCB | 75@3840*2160 |
60@3840*2160 60@1920*1080 |
30@3840*2160 45@2688*1512 60@1920*1080 |
30@3840*2160 60@1920*1080 75@1280*720 |
| UPRO4KUHD16MPCA |
S30@3840*2160 S30@1920*1080 |
30@3840*2160 30@1920*1080 |
20@5440*3060 30@2688*1512 30@1920*1080 |
30@3840*2160 30@1920*1080 30@1280*720 |

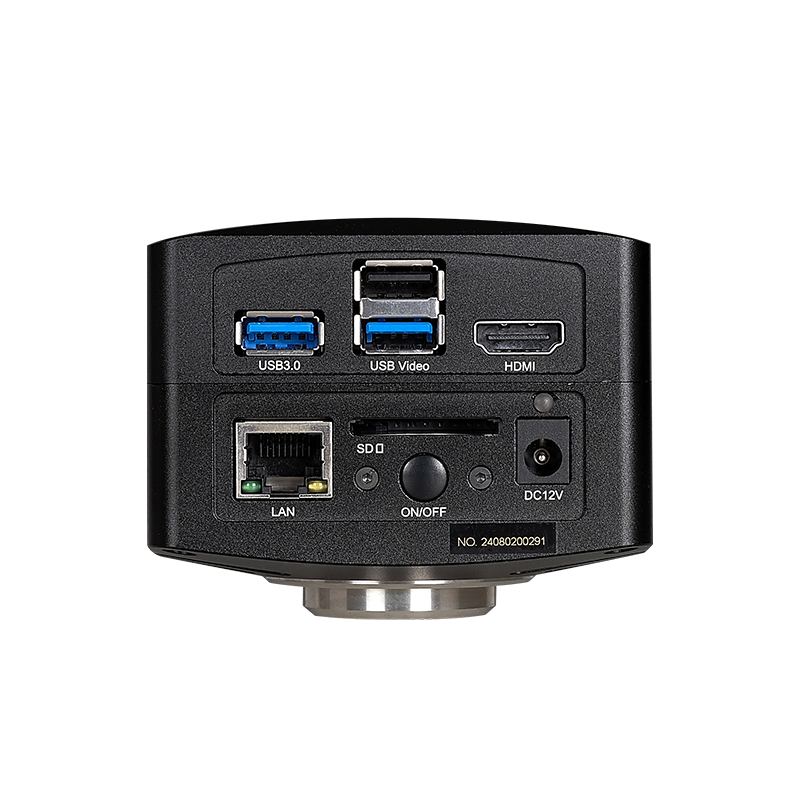

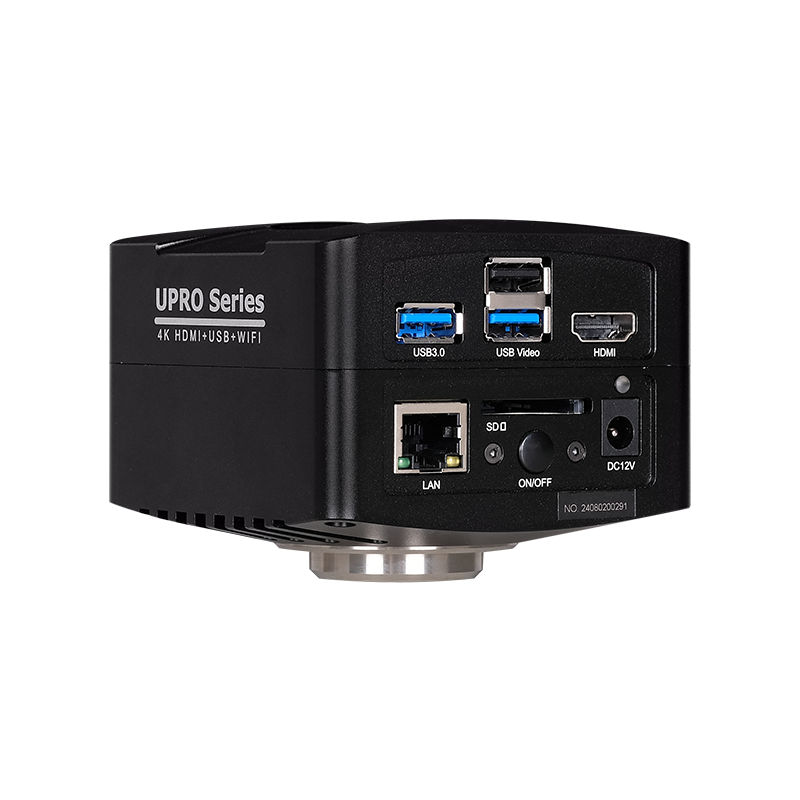

| Interface or Button | Function Description |
|---|---|
| USB Mouse | Connect USB mouse for easy operation with embedded UPROView software |
| USB3.0 | Connect USB flash drive to save pictures and videos |
| USB Video | Connect 5G WiFi module to transfer video wirelessly in real time |
| HDMI | Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
| LAN | LAN port to connect router and switch to transfer video |
| SD | SD card, comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
| ON/OFF | Power switch |
| LED | LED status indicator |
| DC12V | Power adapter connection (12V/1A) |
| Video Output Interface | Function Description |
|---|---|
| HDMI Interface | Comply with HDMI2.0 standard 60fps@4K or 60fps@1080P (UPRO4KUHD8MPCA, UPRO4KUHD8MPCB) 30fps@4K or 30fps@1080P (UPRO4KUHD16MPCA) |
| LAN Interface | Support real-time resolution switching (4K/1080P/720P) H.264 encoded video DHCP configuration or manual configuration Unicast/multicast configuration |
| WiFi Interface | Connecting 5G WLAN adapter (USB3.0 slot) in AP/STA mode |
| USB Video Interface | Connecting USB Video port of PC for video transfer H.264/MJPEG format video |
| Other Function | Function Description |
|---|---|
| Video Saving | Video format: 8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate: 72fps (UPRO4KUHD8MPCA), 75fps (UPRO4KUHD8MPCB) 30fps (UPRO4KUHD16MPCA) 60fps in low delay mode (UPRO4KUHD8MPCA, UPRO4KUHD8MPCB) |
| Image Capture | 8M (3840*2160, UPRO4KUHD8MPCA, UPRO4KUHD8MPCB) JPEG/TIFF image in SD card or USB flash drive, 16M (5440*3060, UPRO4KUHD16MPCA) JPEG/TIFF image in SD card or USB flash drive, (Default SD card priority, priority can be modified in settings) |
| Measurement Saving | Measurement information saved in different layer with image content, Measurement information is saved together with image content in burn in mode |
| ISP | Exposure (Automatic / Manual Exposure) / Gain, White Balance (Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
| Image Operation | Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare (Comparison between real time video and images in SD card or USB flash drive), Embedded Files Browser, Video Playback, Measurement Function |
| Embedded RTC (Optional) | To support accurate time on board |
| Restore Factory Settings | Restore camera parameters to its factory status |
| Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese |
| Software Environment Under LAN/WLAN/USB Video Output | |
|---|---|
| White Balance | Auto White Balance |
| Color Technique | Super-Fine Color Engine |
| Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11 (32 & 64 bit), OSx (Mac OS X), Linux |
| PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More Ethernet Port: RJ45 Ethernet Port Display: 19” or Larger CD-ROM |
| Operating Environment | |
|---|---|
| Operating Temperature (in Centidegree) | -10° ~ 50° |
| Storage Temperature (in Centidegree) | -20° ~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/1A Adapter |
