Features

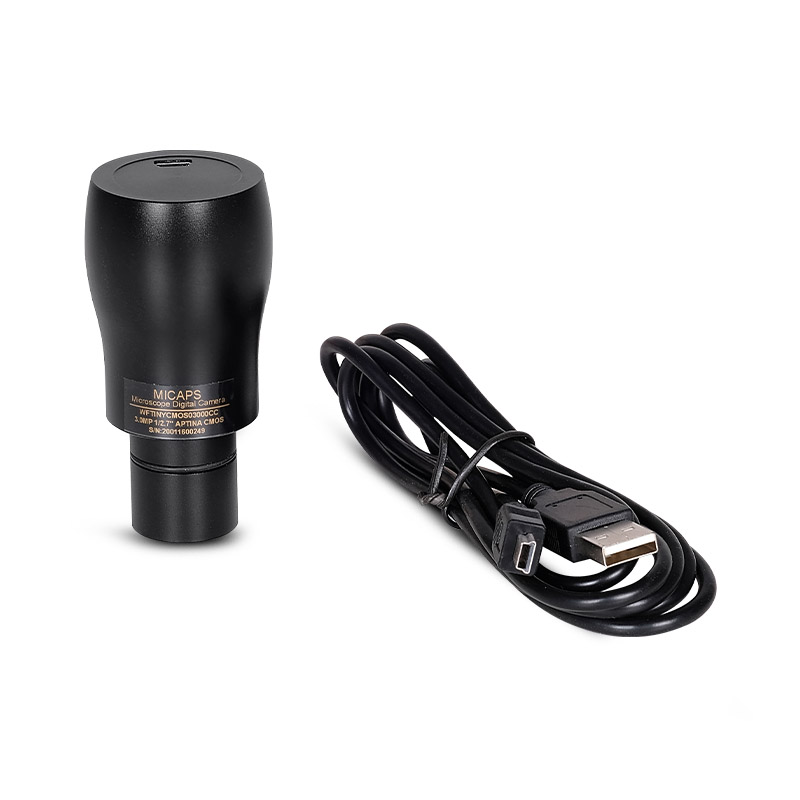

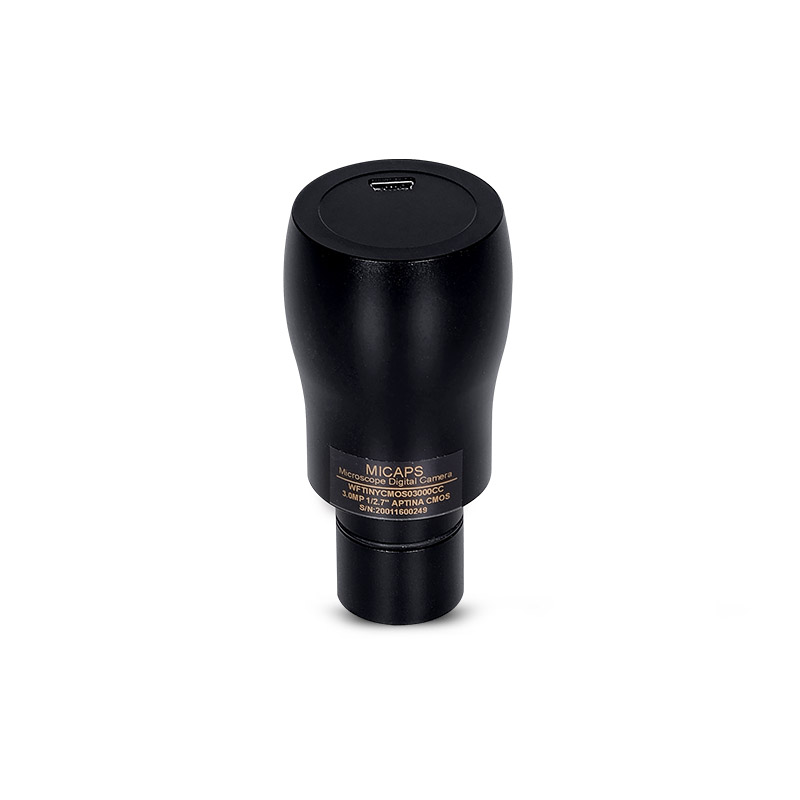

- Microscope eyepiece Camera with 23.2 diameter and compact size
- An extension of Micaps TINYCMS Camera with fixed reduction lens to ensure the full field of view of the microscope from the eyepiece can be imaged to the CMOS sensor
- High-quality Camera with Aptina CMOS sensor
- Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted
- High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption
- With advanced video & image processing application MicroView
Applications
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| WFTINYCMOS5000CA | 5.0M/Aptina(C) 1/2.5″ (5.70×4.28) |
2.2×2.2 | NA | 2@2592×1944 3@2048×1536 5@1600×1200 7.5@1280×1024 | N/A | Auto |
| WFTINYCMOS3000CA | 3.0M/Aptina(C) 1/2.7″ (4.51×3.38) |
2.2×2.2 | NA | 3@2048×1536 5@1600×1200 7.5@1280×1024 | N/A | Auto |
| WFTINYCMOS2000CA | 2.0M/Aptina(C) 1/3.2″ (4.48×3.36) |
2.8×2.8 | NA | 5@1600×1200 7.5@1280×1024 7.5@1280×960 20@800×600 | N/A | Auto |
| WFTINYCMOS1300CA | 1.3M/Aptina(C) 1/3″ (4.60×3.70) |
3.6×3.6 | NA | 7.5@1280×1024 12.5@1024×768 12.5@800×600 | N/A | Auto |
| WFTINYCMOS0350CA | 0.35M/Aptina(C) 1/4″ (3.58×2.69) |
5.6×5.6 | NA | 30@640×480 | N/A | Auto |
| WFTINYCMOS05100CB | 5.1M/IMX335(C) 1/2.8″ (5.18×3.89) |
2.0×2.0 | 505mV 70dB 43dB | 26@2592×1944 26@1280×960 26@640×480 | 1×1 1×1 1×1 | 0.1-2000 ms |
| Software Environment Under Lan/wan/usb Video Output | |
|---|---|
| Spectral Range | 380~650nm (with IR-cut Filter) |
| White Balance | Auto White Balance |
| Color Technique | N/A |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture and Movie |
| Data Format | MJPEG |
| Cooling System* | Natural |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10 (32 & 64 bit), OSx (Mac OS X), LINUX |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher, Memory: 4GB or More, Ethernet Port: RJ45 Ethernet Port, Display: 19” or Larger, CD-ROM |
| Operating Environment | |
|---|---|
| Operating Temperature (in Centidegree) | -10° ~ 50° |
| Storage Temperature (in Centidegree) | -20° ~ 60° |
| Operating Humidity | 30 ~ 80%RH |
| Storage Humidity | 10 ~ 60%RH |
| Power Supply | DC 5V over PC USB port |
