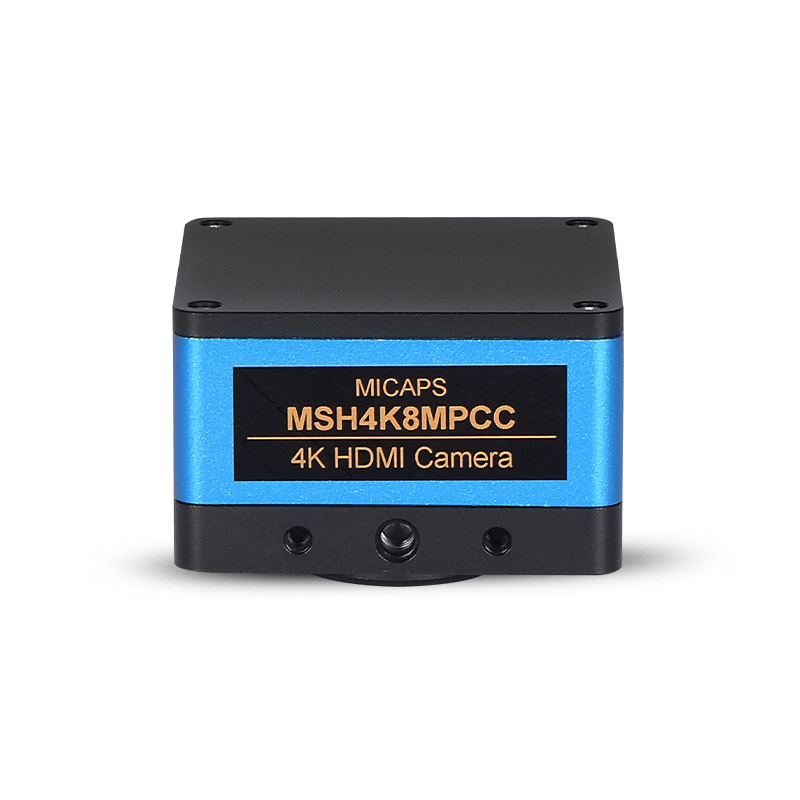

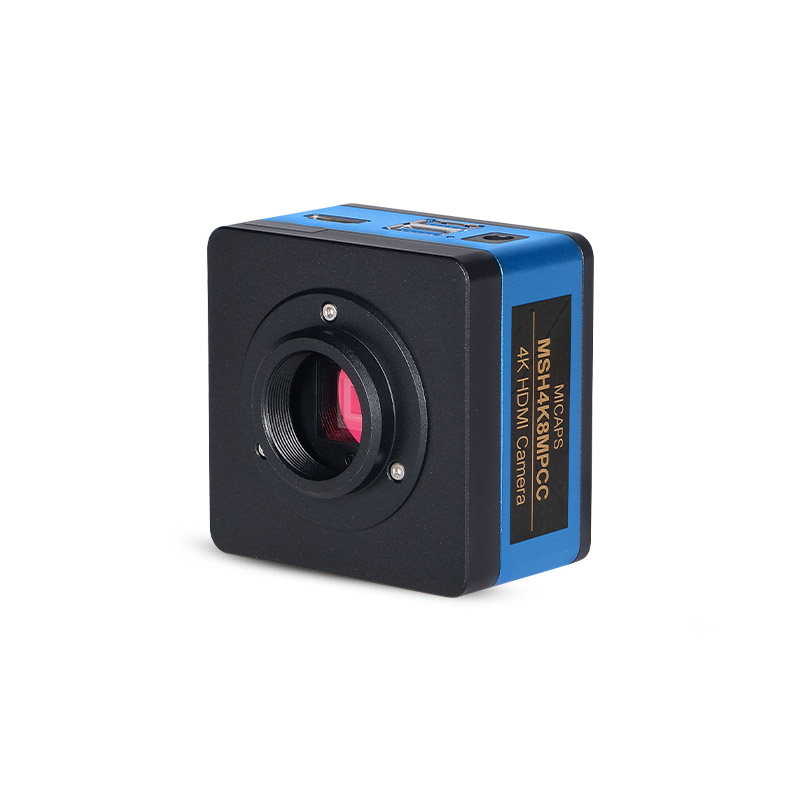

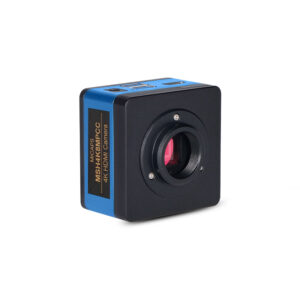

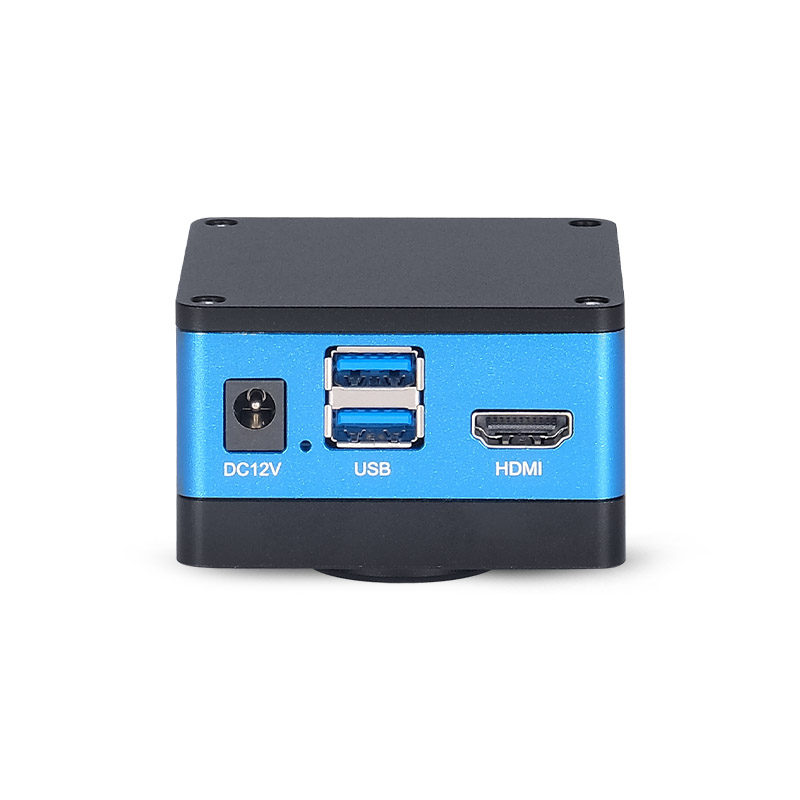

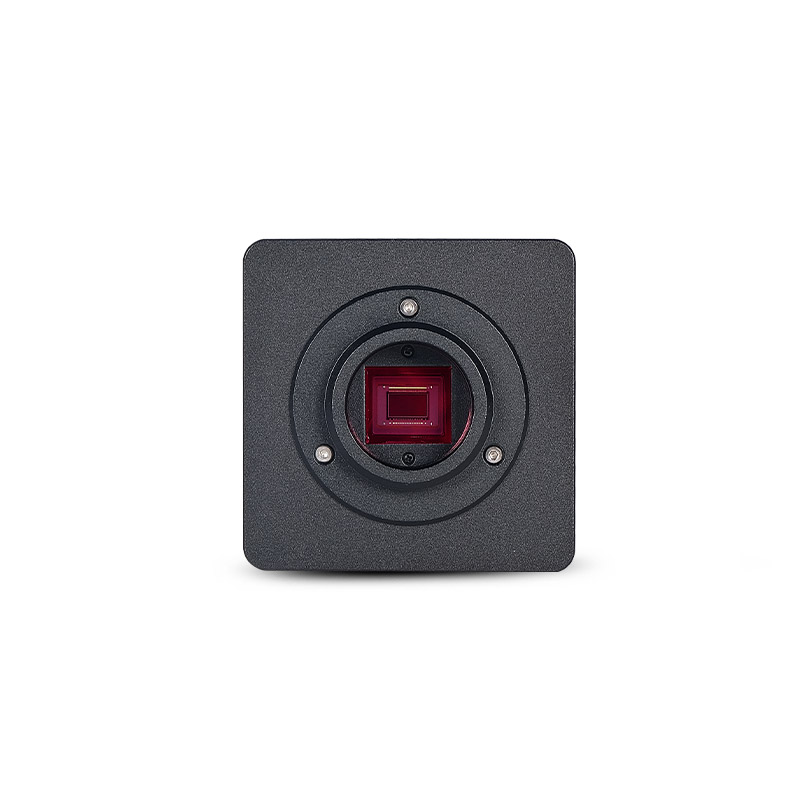

MSH4K8MPCC SERIES
C-mount USB3.0 CMOS Cameras
SONY STARVIS 2 CMOS Sensor
The MSH4K8MPCC HDMI Camera is intended for acquisition of digital images from stereo microscopes, biological microscopes. Here are basic characteristics of the camera:
Features
- Sony STARVIS 2 back-illuminated CMOS sensor
- 4K/1080P auto switching according to monitor resolution
- Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
- USB flash drive for captured image and video storage, support local preview and playback
- Support the capture and display of RAW format images
- Supports USB voice control module, enabling real-time control of the camera through voice commands for taking photos, recording videos, freezing, and other operations
- Supports scanning gun to capture images
- Excellent ISP with local tone mapping and 3D denoising
- New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF function, multi-image Stitch function
- Provide real-time video EDF function and real-time video WDR output function
- Provide real-time Stitch function to obtain higher quality images through real-time processing
- Provide two sets of default ISP parameters for biological microscope and stereo microscope
- Embedded MicroView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
