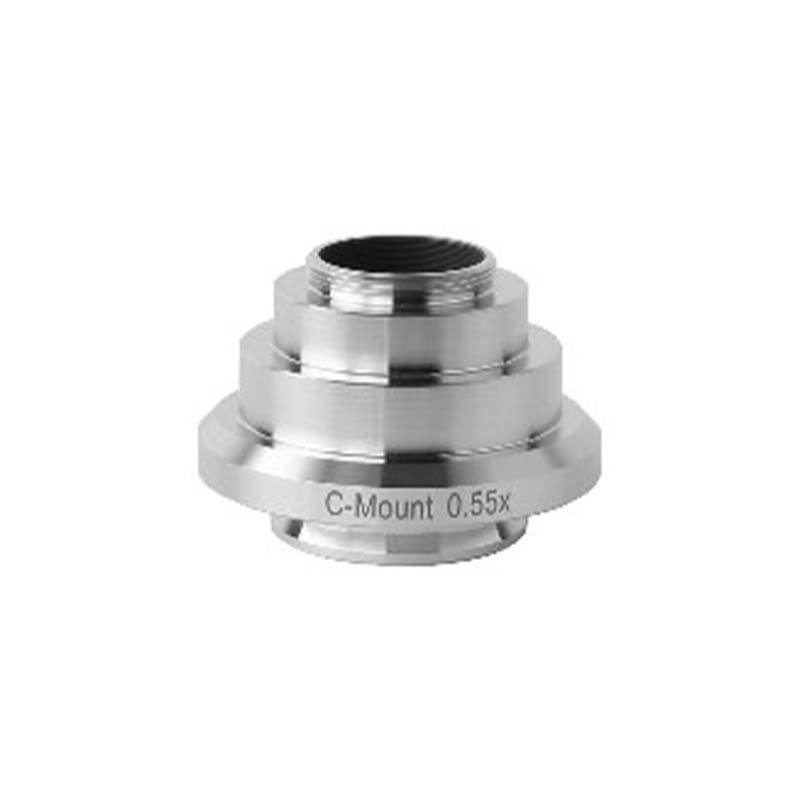

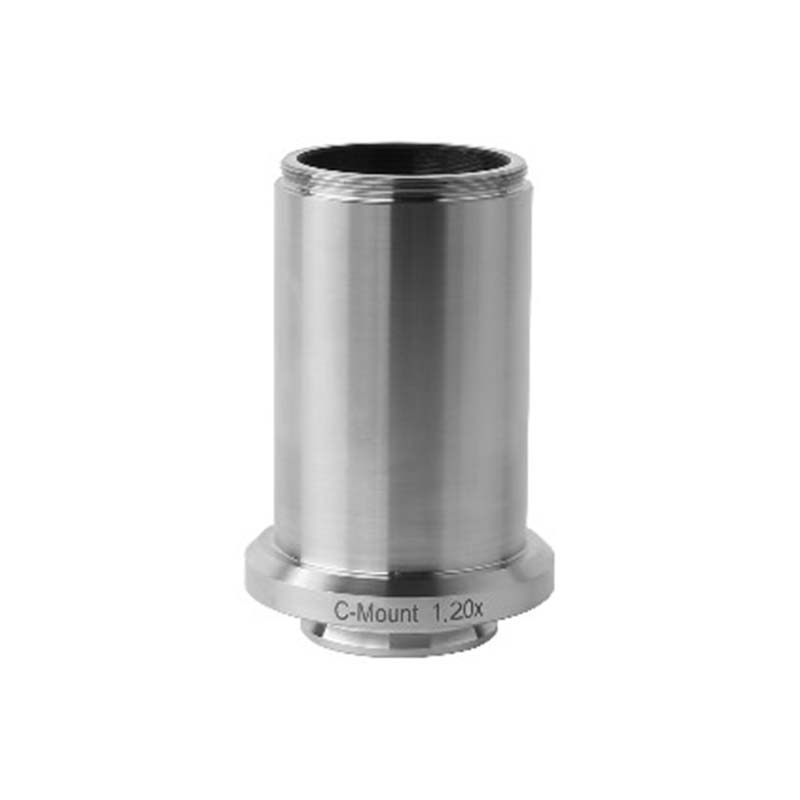

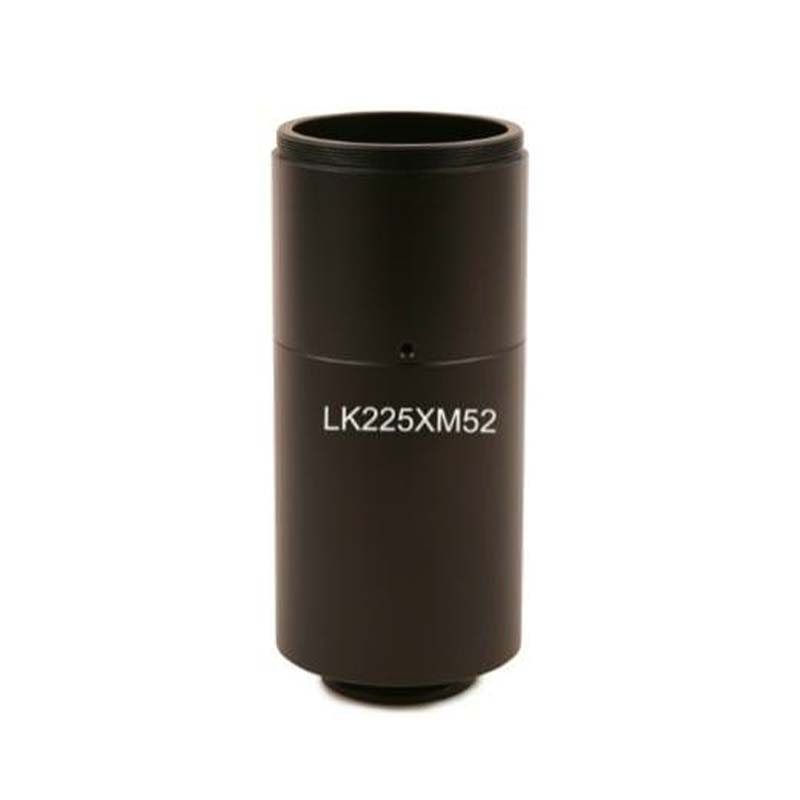

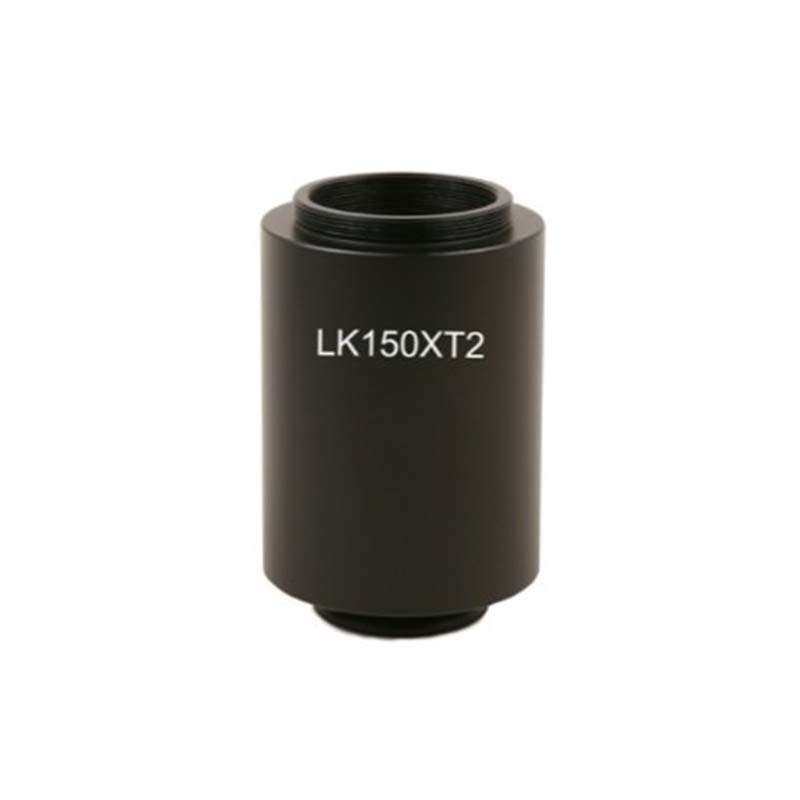

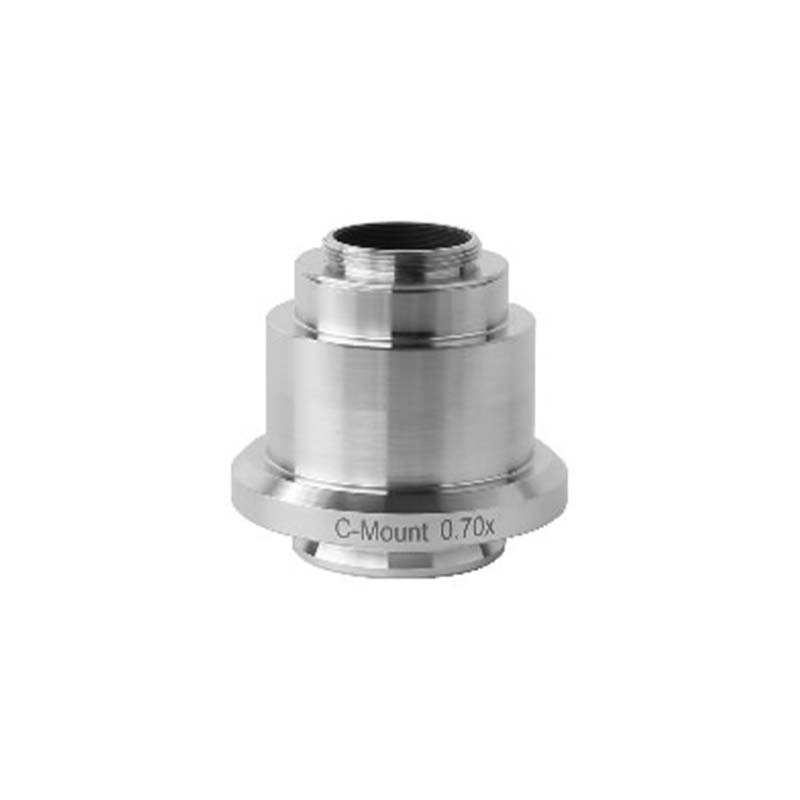

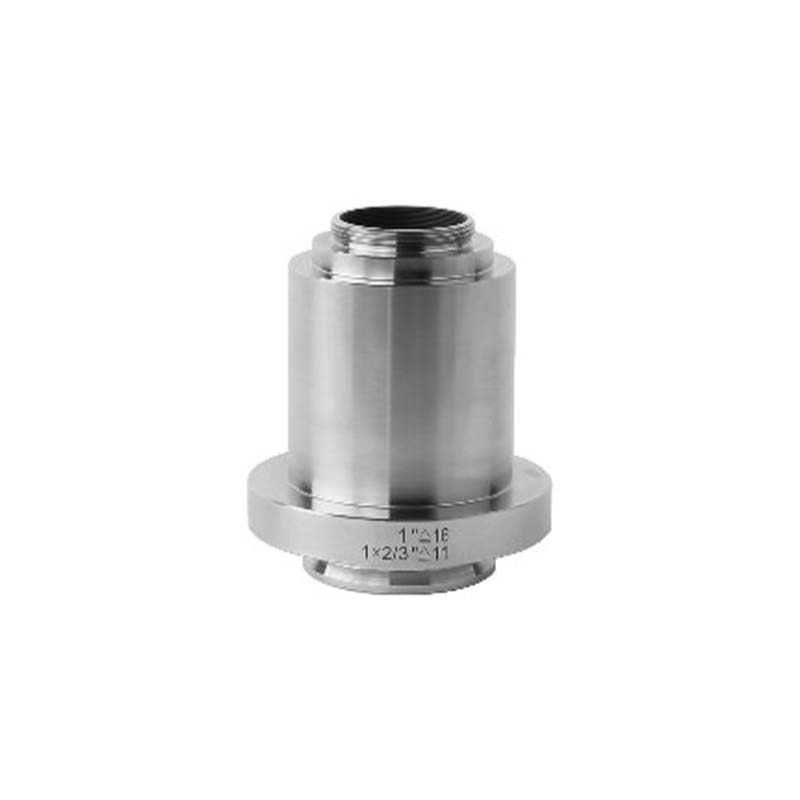

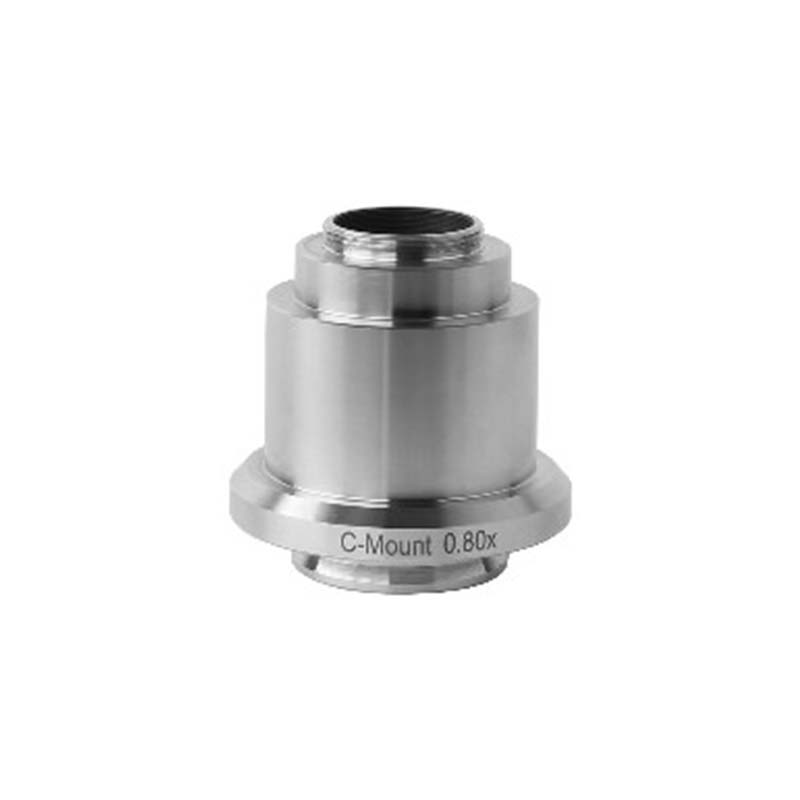

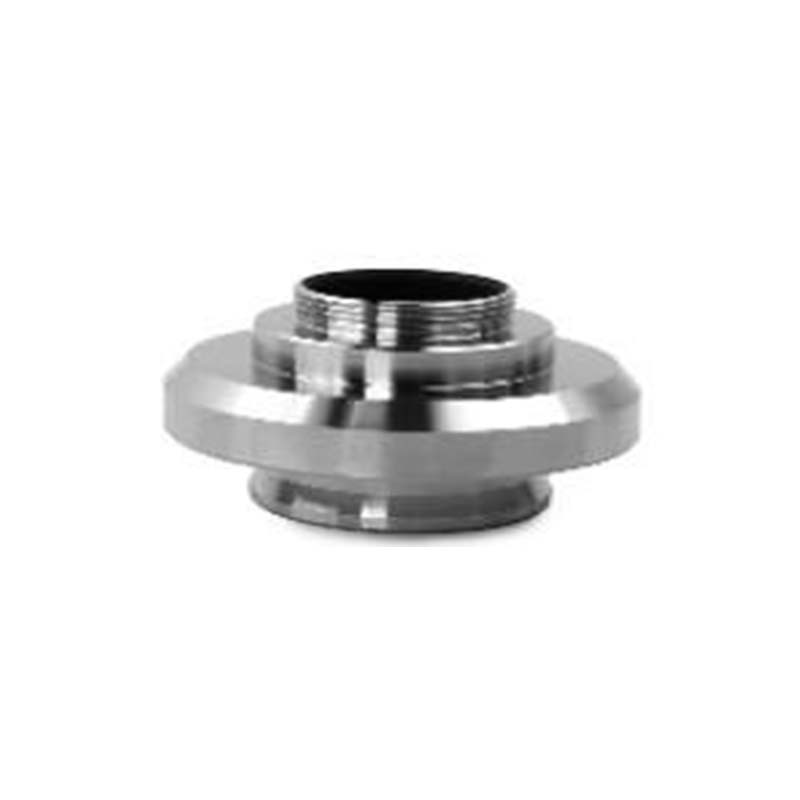

LEICA Microscope Phototube Adapter (34.4mm Interface)

Convert LEICA trinocular microscope phototubes/heads/ports (with standard 34.4 mm / 1.35” inner diameter insertion end) to standard camera mounts:

• C-Mount (25.4 mm / 1″, 32 TPI)
• T2 Mount (M42×0.75 mm)
• M52 Mount (M52×0.75 mm)

Built-in Reduction Lens Options:

Available with optical reducers: 2.25X, 1.5X, 1.2X, 1X, 0.8X, 0.63X, 0.5X, and 0.35X
Designed for CCD/CMOS sensors: 2.7”, 1.8”, 4/3”, 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3”, 1/4”

Compatible NIKON Microscopes:

Specially designed for LEICA DM series biological and industrial microscopes with UIS trinocular ports

Features:

• High-durability stainless steel construction
• Telecentric optical design minimizes light loss
• Maintains parfocality with various objective lenses
• Diffraction-limited MTF ensures high-resolution image quality
• Aperture fully matched to the exit pupil of LEICA UIS objectives
