Features
- Modular high scalability: The core board and the interface board are designed independently, while focusing on the core Camera functions, it has the characteristics of high scalability and embeddability.
- Simple image transmission: Only one HDMI cable is needed to connect with SVISMCOS series cameras, which can perfectly realize the control of the camera, the transmission, display and processing of image and video data, eliminating the trouble of hardware compatibility and Camera driver problems, seamlessly integrated with the camera, providing users with worry-free mobile image acquisition solutions.
- Openness of product development: Users can develop and run their own image processing applications through the supplied SDK, realize on-site industrial control through standard user interfaces, process image and video data according to preferences and needs, and finally submit scientific reports, completely liberated from camera hardware problems and image or video data capture problems, focus on professional image processing and analysis, and quickly develop user own target equipment.
- Portability of product use/integration: Compact size ensures portability for product use and integration.
- Versatility of product application: It can be applied to various scenarios, such as microscope observation, biological image analysis, industrial inspection and various intelligent image analysis equipment, to meet different development needs.
Specification
Models
Accessories
Downloads
Specification
| Model | Processor | Memory/Storage | Display | Computing Power | System Version |
|---|---|---|---|---|---|
| SVIMS12K133A | RK3399 | 2G LPDDR3/32G EMMC | 1080P multi-touch display | NA | Android 10.0 |
| SVIMS14K133A | RK3588 | 2G LPDDR3/32G EMMC | 4K multi-touch display | 6 TOPS | Android 12.0 |
| No | Function Description |
|---|---|
| 1 | Recovery key: Used together with Power key (13), press both at the same time to enter the firmware burning mode. |
| 2 | SD card slot: |
| 3 | USB 3.0 A port 1: External mouse, keyboard, U disk and other peripherals can be connected. |
| 4 | USB-C port: External mouse, keyboard, U disk and other peripherals can be connected; it can be connected to the DP port of the monitor to display the SVISMCOS12K133A interface; It can be connected to a PC, and the built-in storage of SVISMCOS14K133A can be accessed on the PC side; in the firmware burning mode, the firmware can be burned on the PC side. |

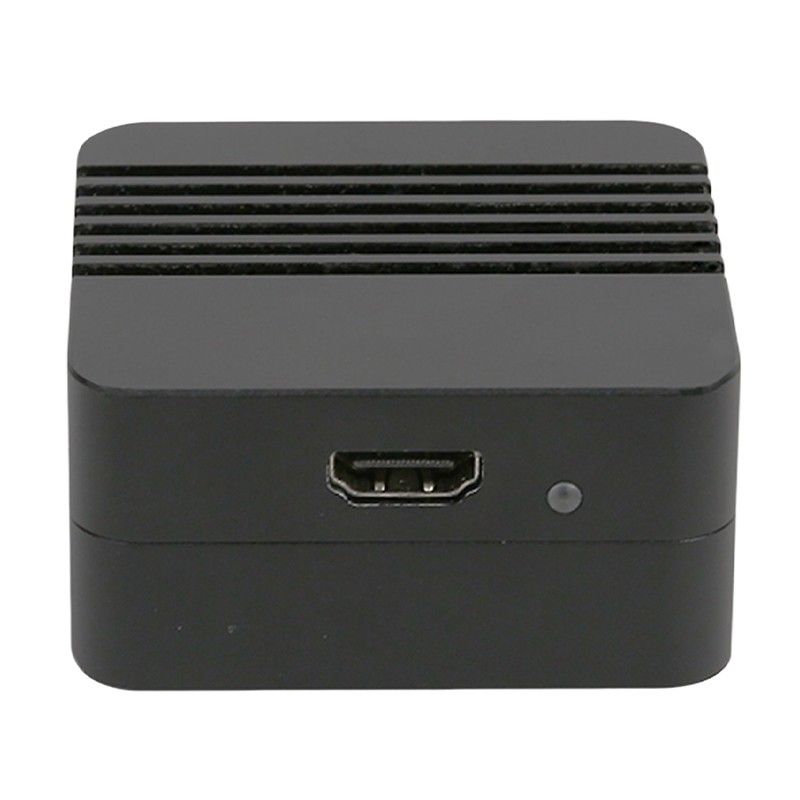

| 5 | HDMI 2.0 A port 1: HCMOS series Camera input interface 1. |
| 6 | 12V DC5525: Power input interface. |
| 7 | Status indicator: The left side is the power indicator light, which is off when the power is not connected, and is always red when the power is connected; The right side is the running indicator light, which goes out when the machine is turned off, and the green light flashes when it is turned on. |
| 8 | 2.5mm audio port: External shutter release. |
| 9 | 10/100/1000Mbps adaptive network port |
| 10 | USB 2.0 A port 1: External mouse, keyboard, U disk and other peripherals can be connected. |
| 11 | HDMI 2.0 A port 2: HCMOS series Camera input interface 2. |
| 12 | USB 3.0 A port 2: USB3.0 image data interface. The function is not yet available. |
| 13 | Power button: Short press to power on; long press to power off. |
Powerful Hardware and Software Integration
easily meet various needs
-
Equipped with powerful RK3399 six-core 64-bit CPU, over 2.0GHz
-
2GB DDR3 memory and 32GB EMMC storage, high computing capability and stability
-
4K VP9 and 4K 10bits H265/H264 video hardware decoding up to 60fps
-
Support 1080P WMV, MPEG-1/2/4, VP8 format video hardware decoding
-
1080P H.264 and VP8 video hardware encoding acceleration
-
Multiple video inputs and outputs
-
Built-in Android 10.0 operating system, compatible with 99% industry software
-
Dual USB3.0 Type C ports
-
Supports PCIe 2.1b
Industrial-grade Design
724 hours of stable operation*
-
Safe and reliable communication, ensuring uninterrupted device network communication
-
Pure flat installation, easy to integrate with the product
-
High and low temperature resistance, IP65 dustproof and waterproof
-
Lower heat generation and power consumption
Precise Touch
more sensitive
-
Smooth surface treatment, high stability, Super experience
-
Quasi-industrial-grade touch solution, 10-point capacitive touch, 3mm tempered glass cover
-
Effective anti-fog and dust-proof, high resolution, more sensitive response, no blind spots

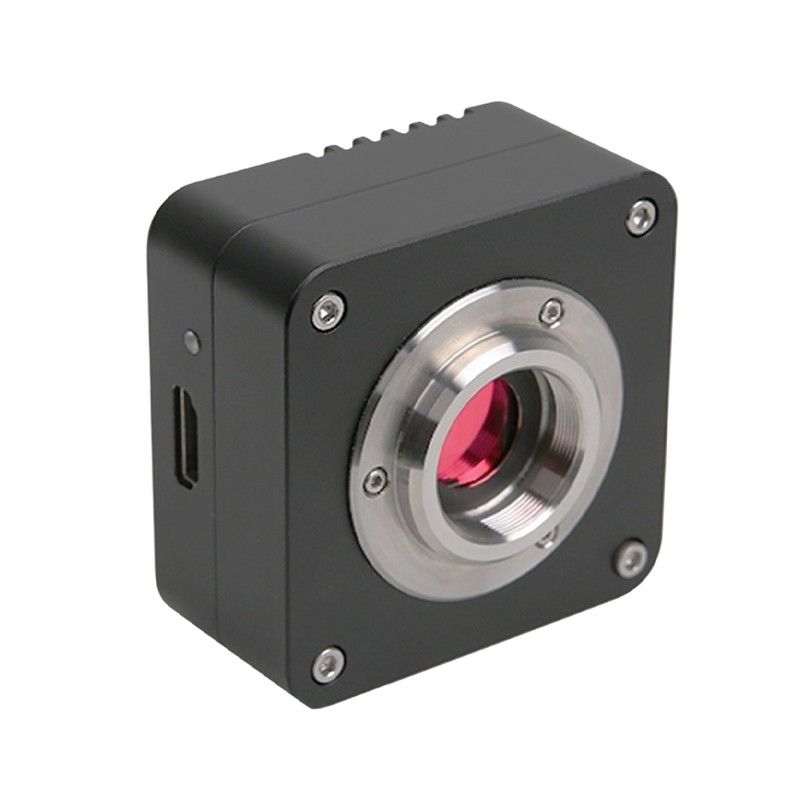

| Model | Sensor & Size | Pixel (μm) | G Sensitivity / Dark Signal | FPS | FPS | Exposure |
|---|---|---|---|---|---|---|
| SVISCMOS8300CA | 8.3M/IMX678(C) 1/1.8” (7.68×4.32) | 2.0×2.0 | 3541 (mV/lx/s) 0.15mv with 1/30s | 42@1920×1080 | 3840×2160 | 0.02ms~15s |
| SVISCMOS8300CB | 8.3M/IMX585 1/1.2” (11.2×6.3) | 2.9×2.9 | 5970mv with 1/30s 0.15mv with 1/30s | 42@1920×1080 | 3840×2160 | 0.02ms~15s |
| SVISCMOS20000CA | 20M/IMX283 1” (13.2×8.9) | 2.4×2.4 | TBD | TBD | TBD | TBD |
| SVISCMOS45000CA | 45M/IMX294 4/3” (17.26×13.03) | 4.6×4.6 | 108mv with 1/30s 0.03mv with 1/30s | 42@1920×1080 | 42@1920×1080 | 0.02ms~15s |
| SVIGSMOS4200MB-RAW | 4.2M/GSENSE2020BSI (M, UV, RS) 1.2” (13.31×13.31) | 6.5×6.5 | 1.1×10⁸ (e⁻/(W/m²·s)) QE93.7%@550nm 80e⁻/s·pix | 18@2048×2048 18@1024×1024 | 18@2048×2048 18@1024×1024 | 0.15ms~15s |
| SVIGSMOS4200MB-YUV | 4.2M/GSENSE2020BSI (M, UV, RS) 1.2” (13.31×13.31) | 6.5×6.5 | 1.1×10⁸ (e⁻/(W/m²·s)) QE93.7%@550nm 80e⁻/s·pix | 18@2048×2048 18@1024×1024 | 18@2048×2048 18@1024×1024 | 0.15ms~15s |
| SVISWIR1300MA | 1.3M/IMX990(M) 1/2” (6.40×5.12) | 5.0×5.0 | 121mV with 1/30s 1.0mv with 1/30s | 35@1280×1024 35@640×512 | 35@1280×1024 35@640×512 | 50us~3600s |
