SVTEC3CMOS SERIES

C-mount USB3.0 CMOS Cameras
SONY PREGIUS CMOS Sensor

The SVTEC3CMOS series camera is equipped with a high-quality SONY Exmor CMOS sensor for capturing images. It utilizes USB 3.0/GigE as the transfer interface to enhance the frame rate. SVTEC3CMOS hardware resolutions range from 0.39M to 45M and come with the integrated CNC aluminum alloy compact housing.

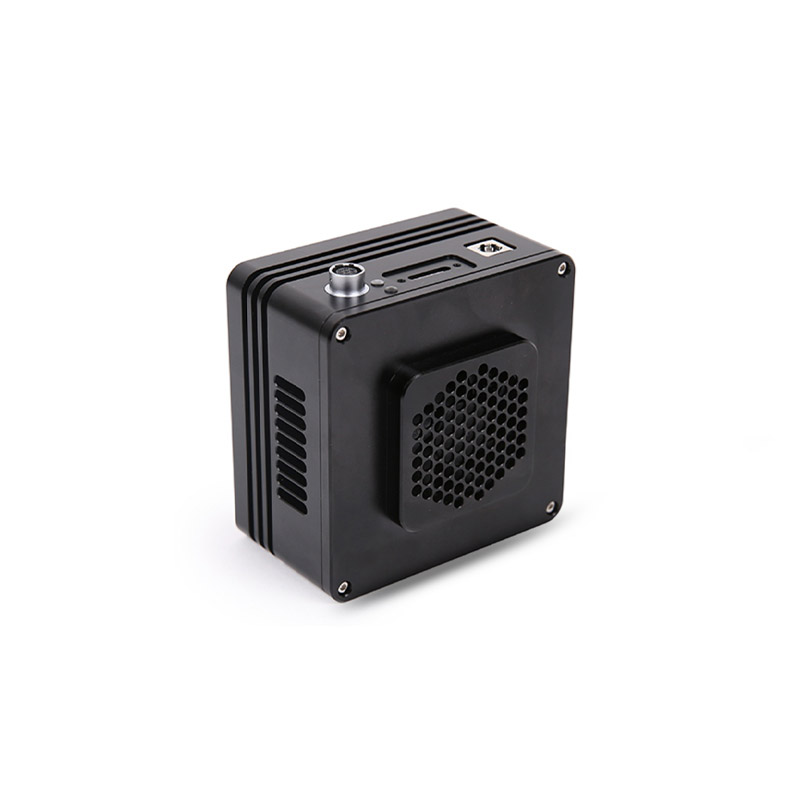

Thanks to the peltier cooling sensor chip, the temperature is lowered by 5–10 degrees below the ambient level. This significantly improves the signal-to-noise ratio and reduces image noise. The camera is designed with a smart structure to ensure efficient heat radiation and prevent moisture issues. An electric fan is incorporated to speed up the heat radiation process. Working temperature can be regulated to specified temperature in 5 minutes.

The SVTEC3CMOS series includes an advanced video and image processing application called MicroView/MicroLite. It offers a versatile software development kit (SDK) compatible with Windows, Linux, and OSX platforms. It supports Native C/C++, C#/VB.NET, DirectShow, and Twain Control API.

This camera is well-suited for applications in low-light environments, microscope fluorescence image capture and analysis, and deep-sky astronomy.
