Zeiss 60N

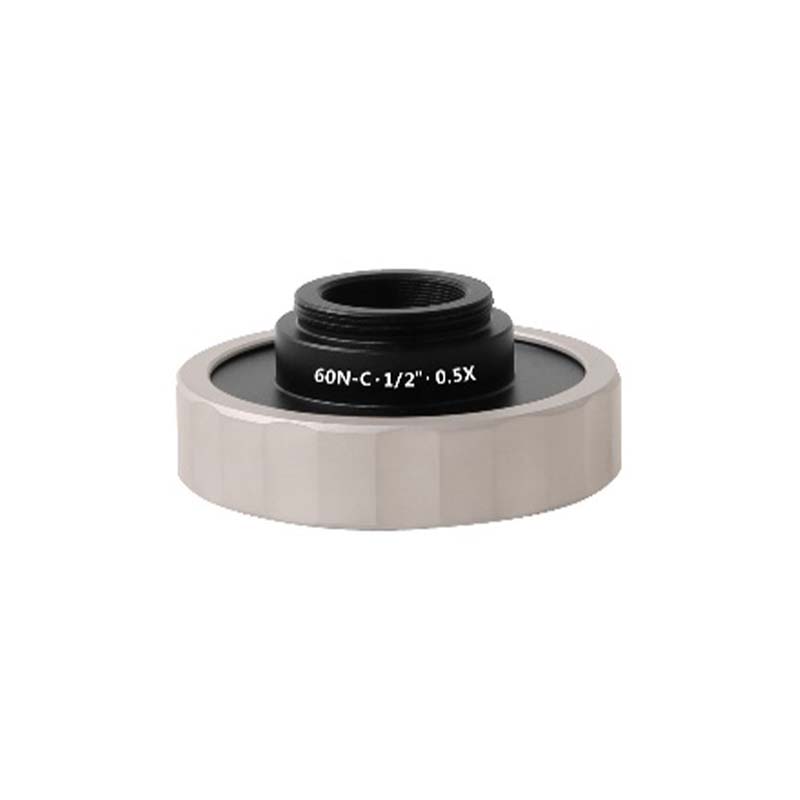

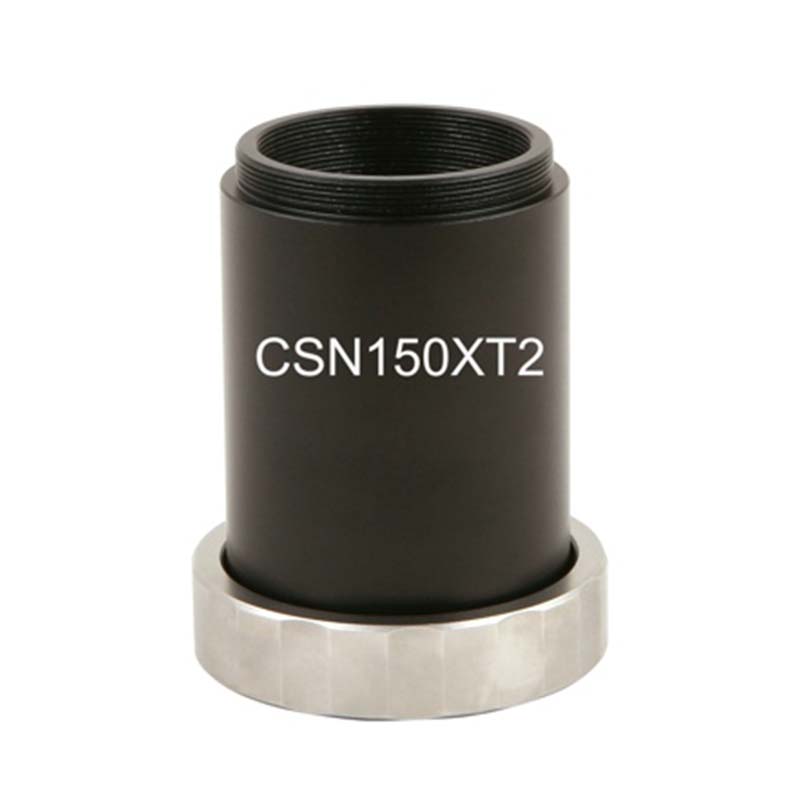

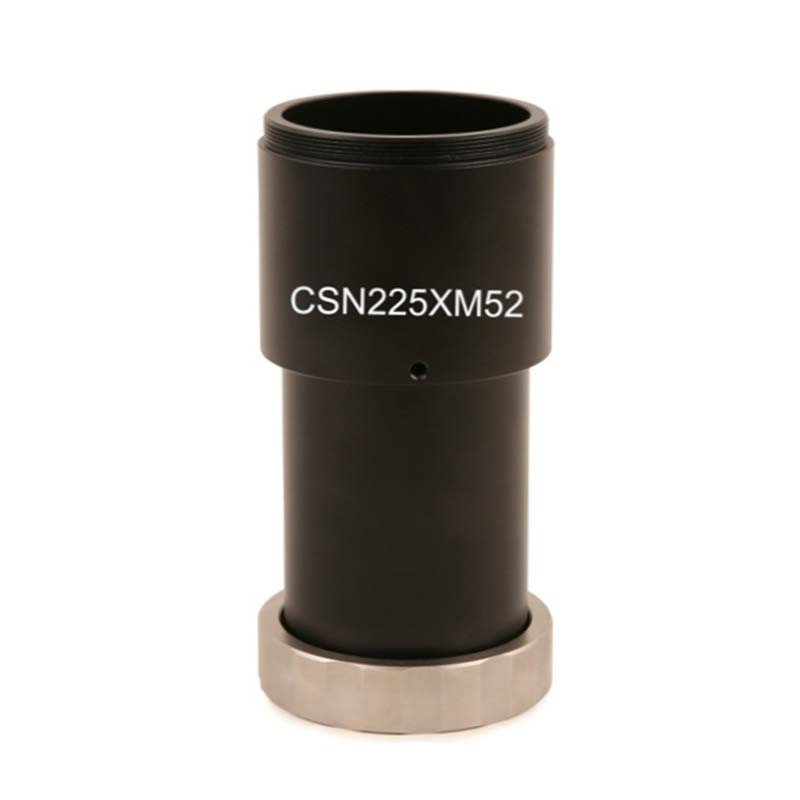

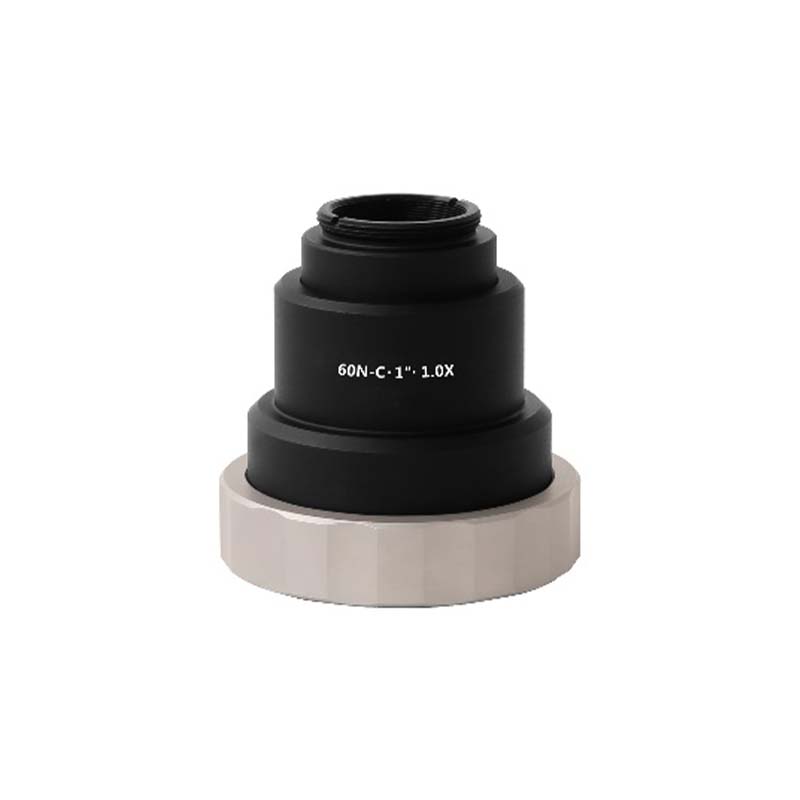

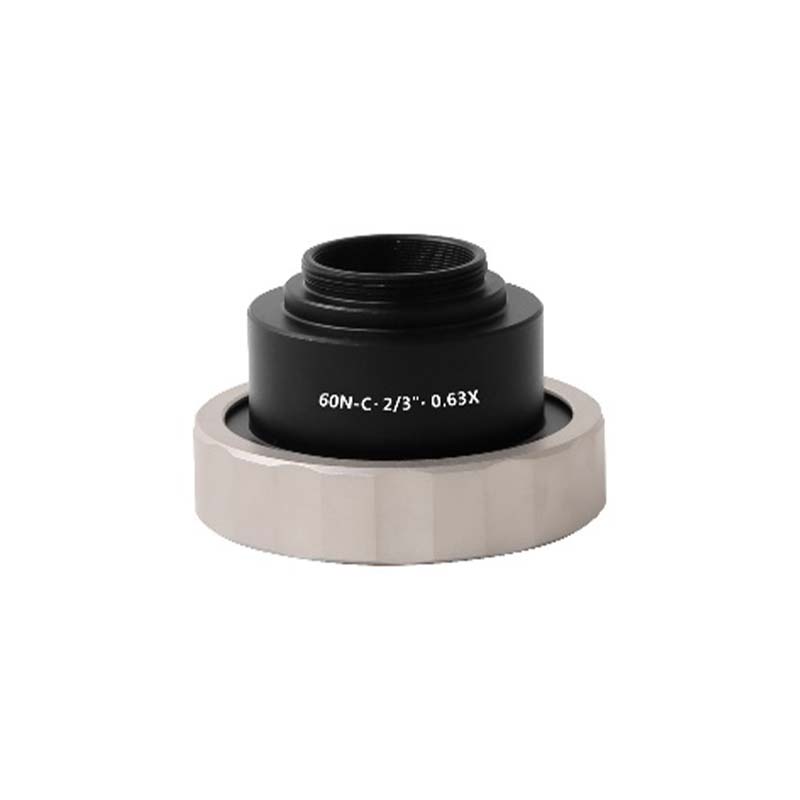

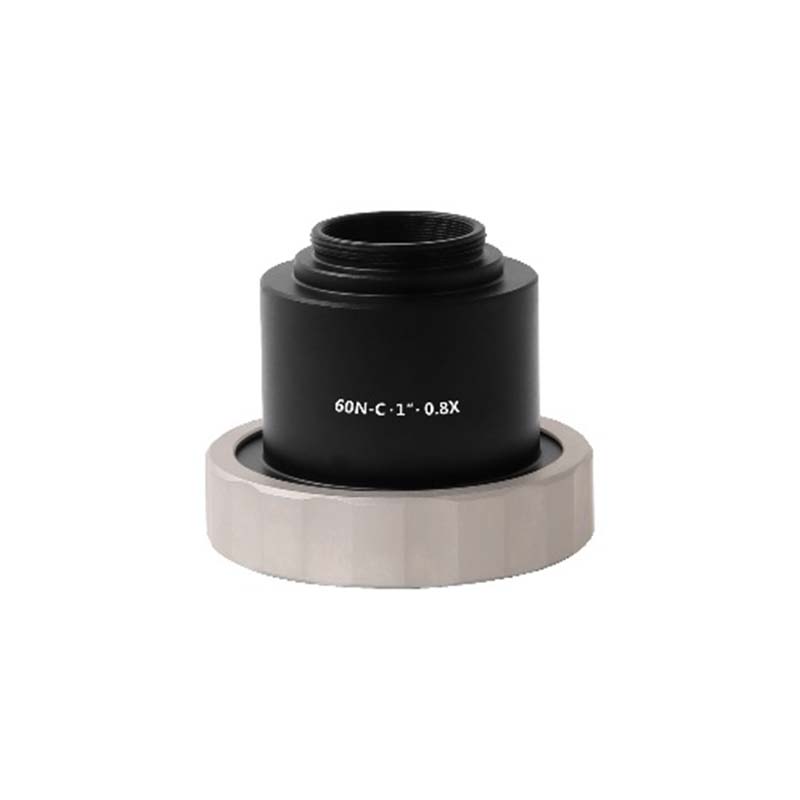

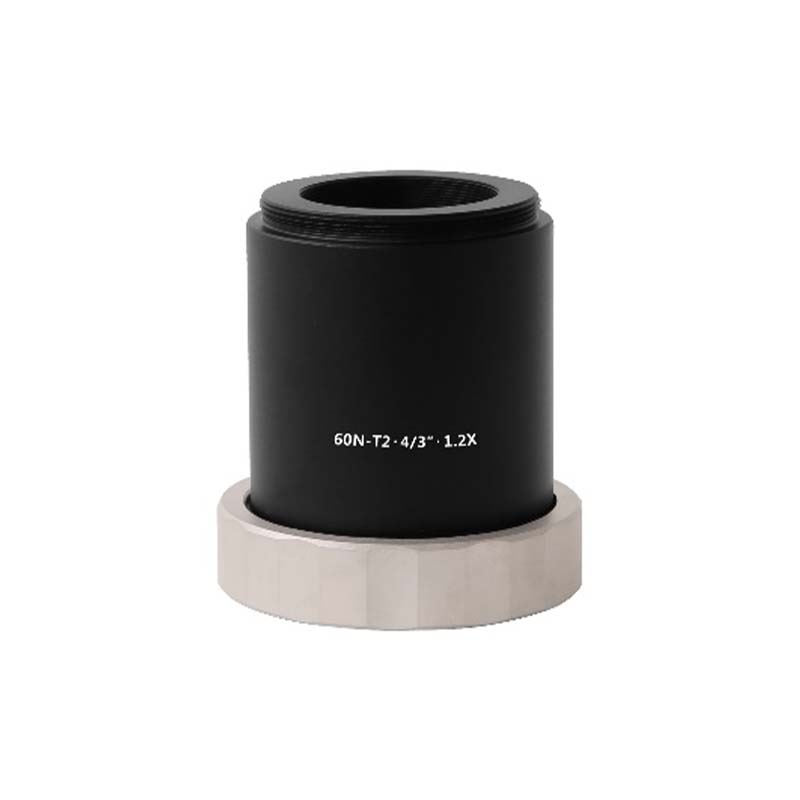

Zeiss Microscope Phototube Adapter

Convert Zeiss trinocular microscope phototubes/heads/ports (with standard M52×1 mm outer thread at the insertion end) to common camera mount types:

• C-Mount (25.4 mm / 1″, 32 TPI)

• T2 Mount (M42×0.75 mm)

• M52 Mount (M52×0.75 mm)

Built-in Reduction Lens Options:

Available in: 2.25X, 1.5X, 1.2X, 1X, 0.8X, 0.63X, 0.5X, and 0.35X.
Optimized for CCD/CMOS sensor sizes including: 2.7″, 1.8″, 4/3”, 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3”, and 1/4”.

Microscope Compatibility:

Designed for Zeiss UIS trinocular tubes such as the Axio series.

Adapter Profile:

One end of the adapter features a M52×1 mm threaded interface, ensuring a secure and accurate connection to the microscope phototube.
