Features
- Made from high-quality anodized aluminum
- Telecentric optics for minimal light loss
- Parfocal with various Zeiss objective lenses
- Diffraction-limited MTF performance
- Aperture fully matched to the exit pupil of UIS objectives

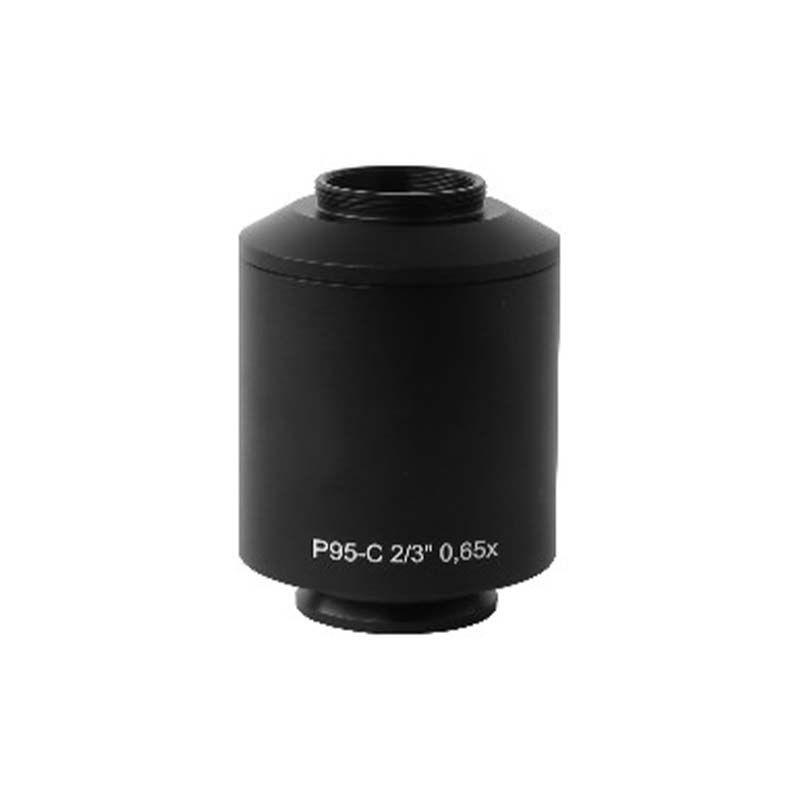

Zeiss P95
Zeiss Microscope Phototube Adapter
Convert Zeiss trinocular microscope phototubes/heads/ports (with standard ISO 30 mm / 1.18″ inner diameter) to the following standard mounts:
-
C-Mount (25.4 mm / 1″, 32 TPI)
-

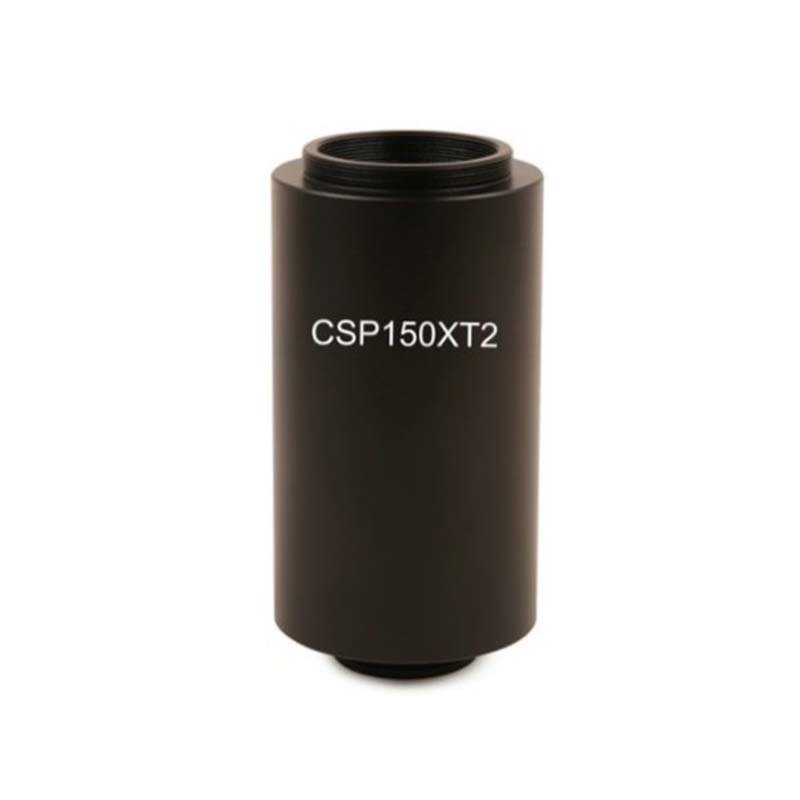

T2 Mount (M42×0.75 mm)
-

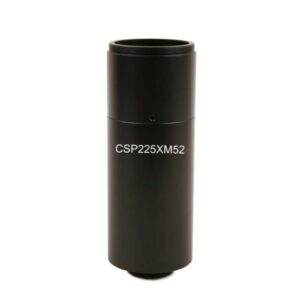

M52 Mount (M52×0.75 mm)
Built-in Reduction Lens Options:

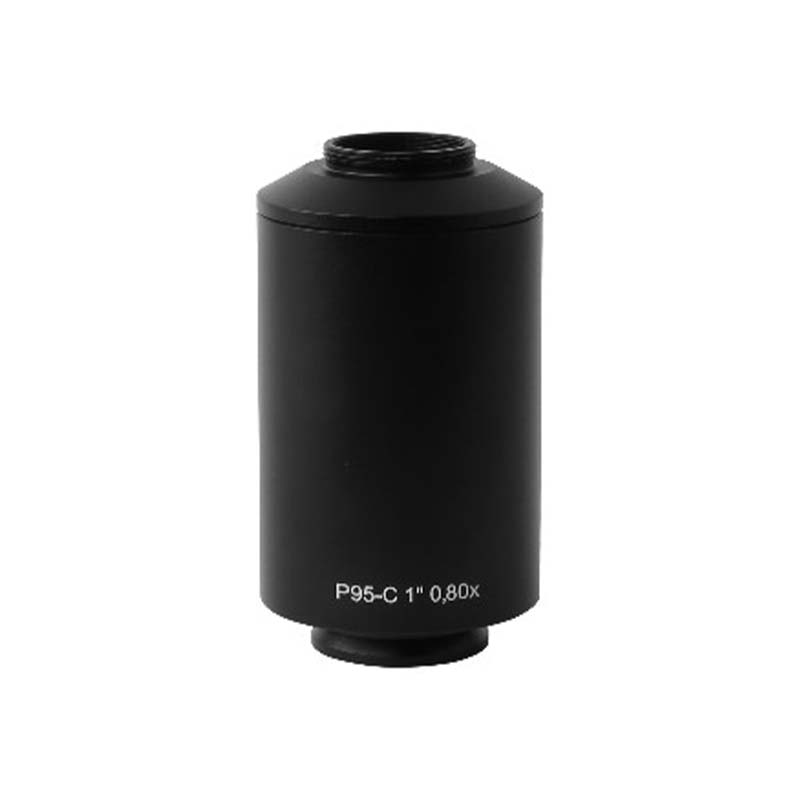

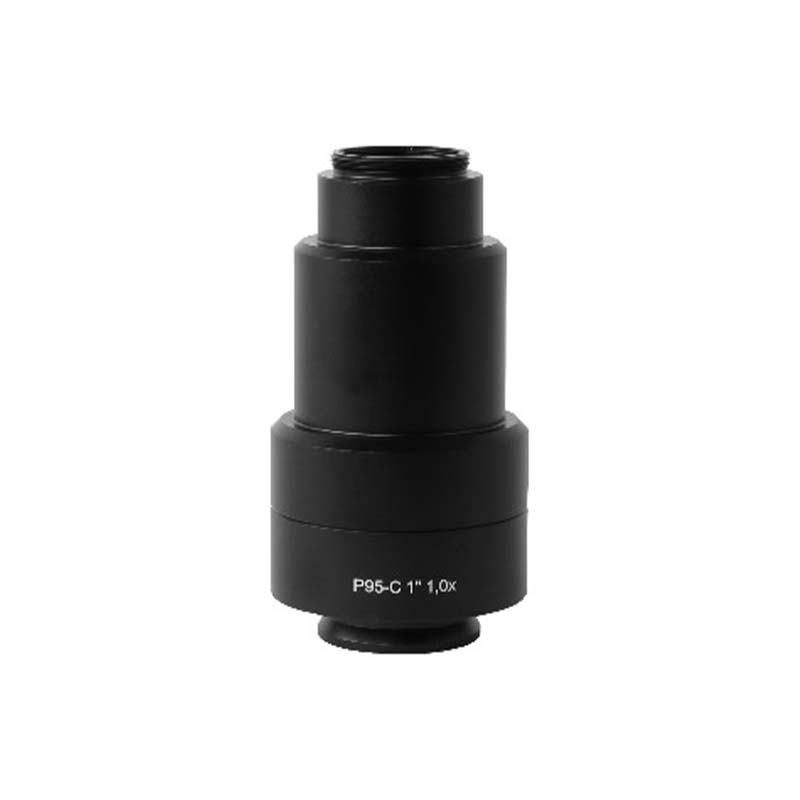

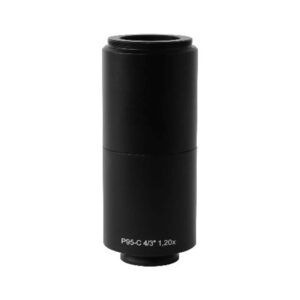

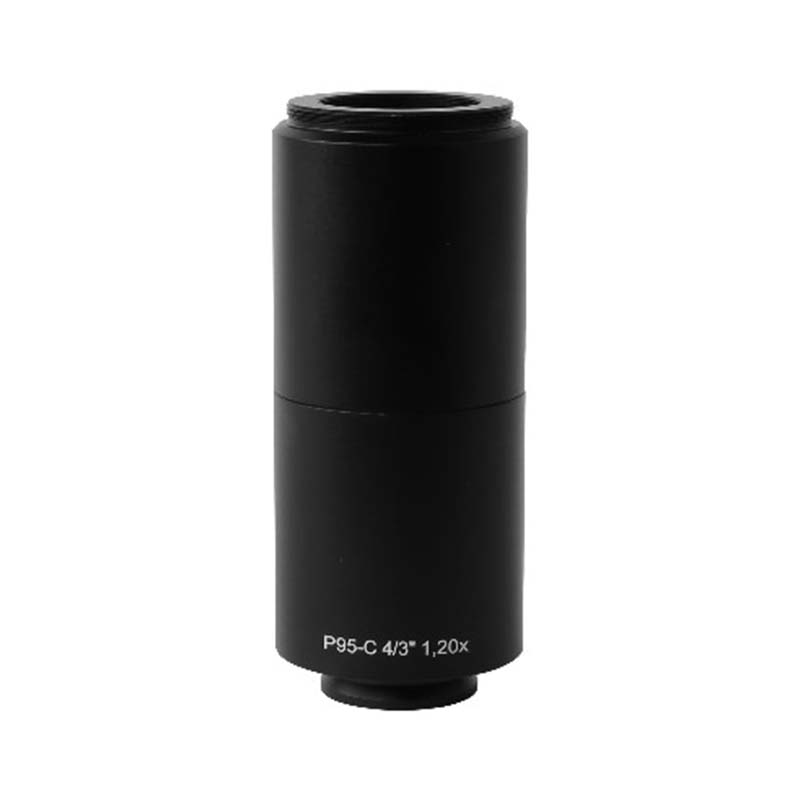

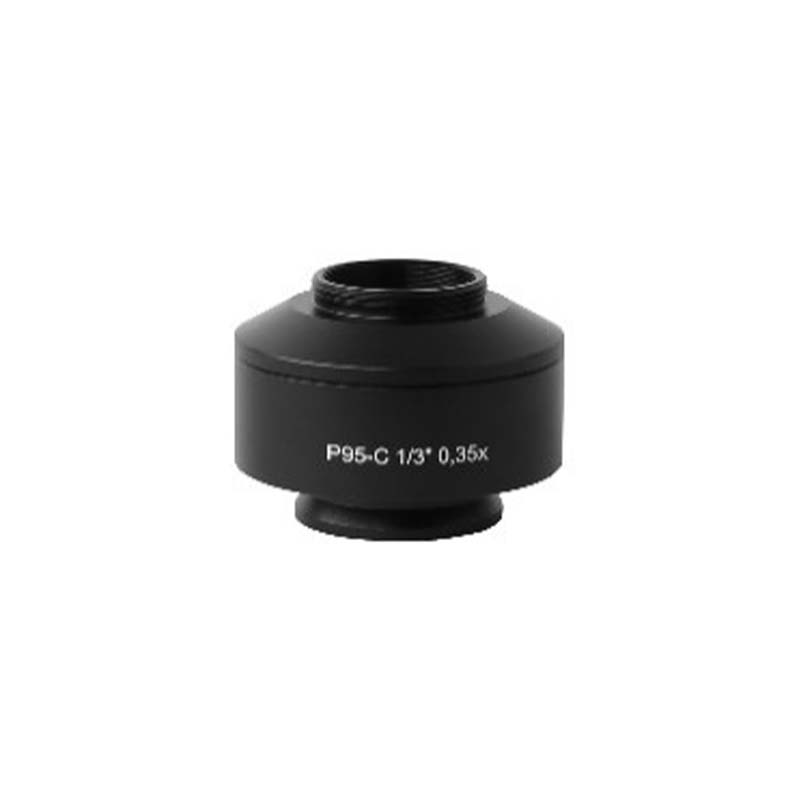

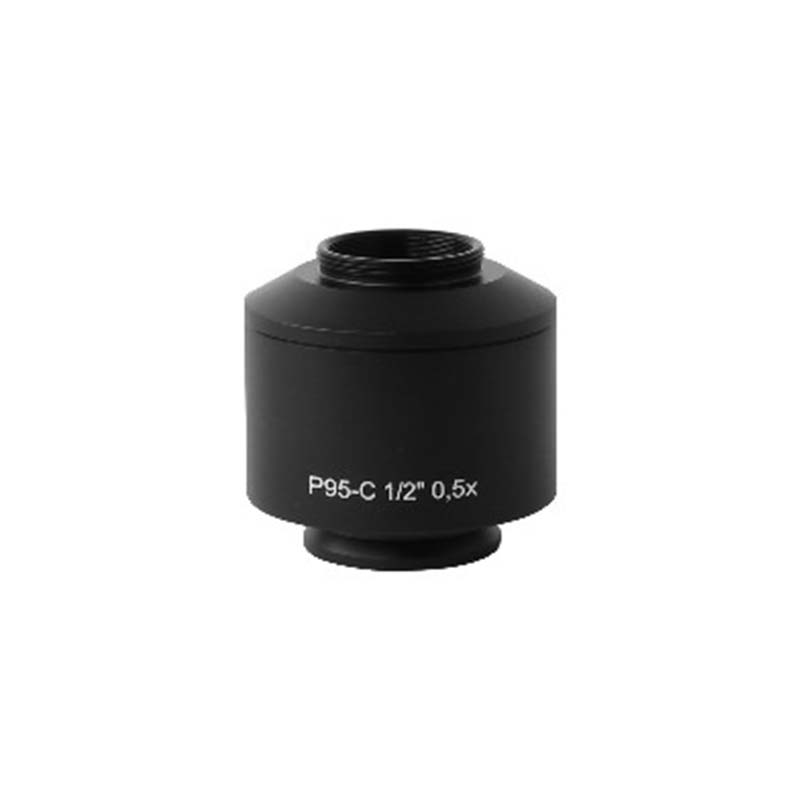

Available with optical reducers: 2.25X, 1.5X, 1.2X, 1X, 0.8X, 0.63X, 0.5X, and 0.35X.
Optimized for CCD/CMOS sensors including:
2.7″, 1.8″, 4/3″, 1″, 2/3″, 1/1.8″, 1/2″, 1/2.5″, 1/3″, and 1/4″
Microscope Compatibility:
Designed for Zeiss UIS trinocular tubes, including:
-
PrimoStar series
-
Primo Vert series
